Overview

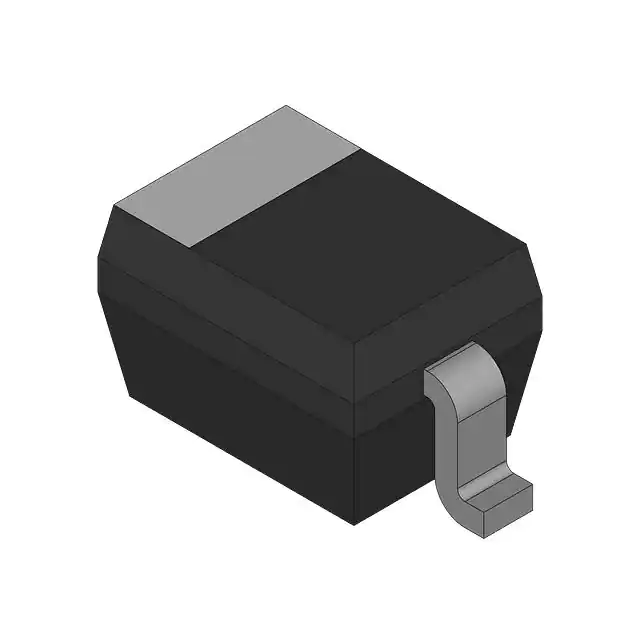

The BZX384-C11 is a low-power voltage regulator diode manufactured by Nexperia, which was previously part of NXP Semiconductors. This component is designed to provide stable voltage regulation in various electronic circuits. It is encapsulated in a small SOD323 (SC-76) plastic SMD package, making it suitable for space-constrained applications.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Zener Voltage | 11 | V |
| Zener Current | 5 | mA |
| Forward Voltage | 0.9 | V |
| Power Dissipation | 300 | mW |
| Tolerance | 5% | |
| Package Type | SOD323 (SC-76) |
Key Features
- Low power consumption with a maximum power dissipation of 300 mW.
- Compact SOD323 (SC-76) plastic SMD package, ideal for space-saving designs.
- Stable Zener voltage of 11 V with a tolerance of 5%.
- Low forward voltage drop of 0.9 V.
- Suitable for voltage regulation in a variety of electronic circuits.
Applications
- Voltage regulation in power supplies and DC-DC converters.
- Overvoltage protection in electronic circuits.
- Signal clipping and limiting in audio and communication systems.
- Reference voltage generation in analog circuits.
- General-purpose voltage stabilization in various electronic devices.
Q & A
- What is the Zener voltage of the BZX384-C11?
The Zener voltage of the BZX384-C11 is 11 V.
- What is the maximum power dissipation of the BZX384-C11?
The maximum power dissipation is 300 mW.
- What is the forward voltage drop of the BZX384-C11?
The forward voltage drop is 0.9 V.
- What is the package type of the BZX384-C11?
The package type is SOD323 (SC-76).
- What is the tolerance of the Zener voltage?
The tolerance of the Zener voltage is 5%.
- What are common applications of the BZX384-C11?
Common applications include voltage regulation, overvoltage protection, signal clipping, and reference voltage generation.
- Is the BZX384-C11 suitable for high-power applications?
No, it is designed for low-power applications with a maximum power dissipation of 300 mW.
- Can the BZX384-C11 be used in analog circuits?
- What is the typical Zener current for the BZX384-C11?
The typical Zener current is 5 mA.
- Is the BZX384-C11 available in other package types?
No, it is specifically available in the SOD323 (SC-76) package.
