Overview

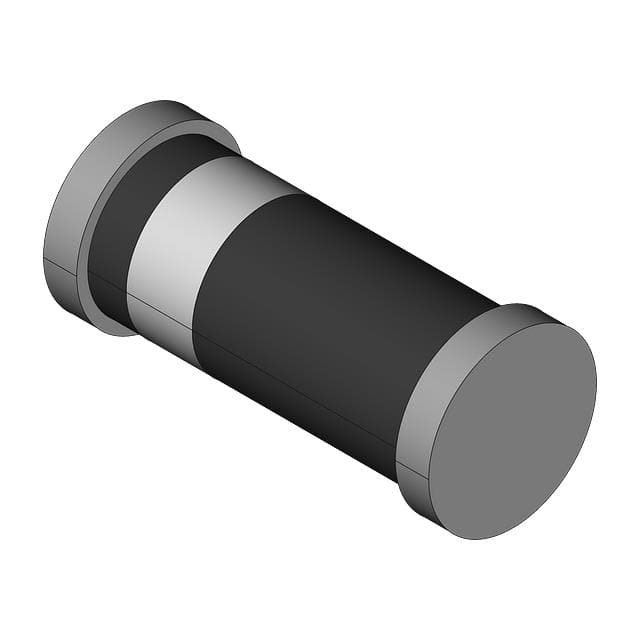

The BZV55-C2V4135 is a low-power voltage regulator diode produced by Nexperia (formerly part of NXP USA Inc.). This component is part of the BZV55 series, which is known for its wide range of nominal working voltages and high reliability. The BZV55-C2V4135 is specifically designed for general regulation functions and is packaged in a small hermetically sealed glass SOD80C Surface-Mounted Device (SMD) package.
Key Specifications
| Parameter | Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Forward Current (IF) | - | - | - | 250 | mA |
| Non-repetitive Peak Reverse Current (IZSM) | tp = 100 μs; square wave; Tj = 25 °C prior to surge | - | - | - | - |
| Non-repetitive Peak Reverse Power Dissipation (PZSM) | - | - | - | 40 | W |
| Total Power Dissipation (Ptot) | Tamb ≤ 50 °C | - | - | 500 | mW |
| Storage Temperature (Tstg) | - | -65 | - | 200 | °C |
| Junction Temperature (Tj) | - | -65 | - | 200 | °C |
| Thermal Resistance from Junction to Ambient (Rth(j-a)) | In free air | - | - | 380 | K/W |
| Working Voltage (VZ) | - | - | 2.4 | - | V |
| Differential Resistance (rdif) | - | - | - | - | Ω |
| Temperature Coefficient (SZ) | - | - | - | - | mV/K |
| Diode Capacitance (Cd) | f = 1 MHz; VR = 0 V | - | - | - | pF |
Key Features
- Low-power voltage regulator diodes in small hermetically sealed glass SOD80C SMD packages.
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range).
- Two tolerance series: ±2% (BZV55-B) and ±5% (BZV55-C).
- Low differential resistance.
- Non-repetitive peak reverse power dissipation up to 40 W.
- Total power dissipation up to 500 mW.
Applications
The BZV55-C2V4135 is suitable for various general regulation functions in electronic circuits. It is commonly used in applications requiring stable voltage regulation, such as in power supplies, voltage reference circuits, and protection circuits against voltage spikes and surges.
Q & A
- What is the BZV55-C2V4135 used for?
The BZV55-C2V4135 is used for general regulation functions in electronic circuits, providing stable voltage regulation. - What is the package type of the BZV55-C2V4135?
The BZV55-C2V4135 is packaged in a small hermetically sealed glass SOD80C Surface-Mounted Device (SMD) package. - What is the forward current rating of the BZV55-C2V4135?
The forward current rating is up to 250 mA. - What is the non-repetitive peak reverse power dissipation of the BZV55-C2V4135?
The non-repetitive peak reverse power dissipation is up to 40 W. - What is the total power dissipation of the BZV55-C2V4135?
The total power dissipation is up to 500 mW. - What are the storage and junction temperature ranges for the BZV55-C2V4135?
The storage and junction temperature ranges are from -65 °C to 200 °C. - What is the thermal resistance from junction to ambient for the BZV55-C2V4135?
The thermal resistance from junction to ambient is up to 380 K/W. - What are the tolerance series available for the BZV55 series?
The BZV55 series is available in two tolerance series: ±2% (BZV55-B) and ±5% (BZV55-C). - What is the working voltage range of the BZV55 series?
The working voltage range is from 2.4 V to 75 V (E24 range). - Where can I find detailed specifications for the BZV55-C2V4135?
Detailed specifications can be found in the product data sheet available from Nexperia's official website or through distributors like Digi-Key and Mouser Electronics.
