Overview

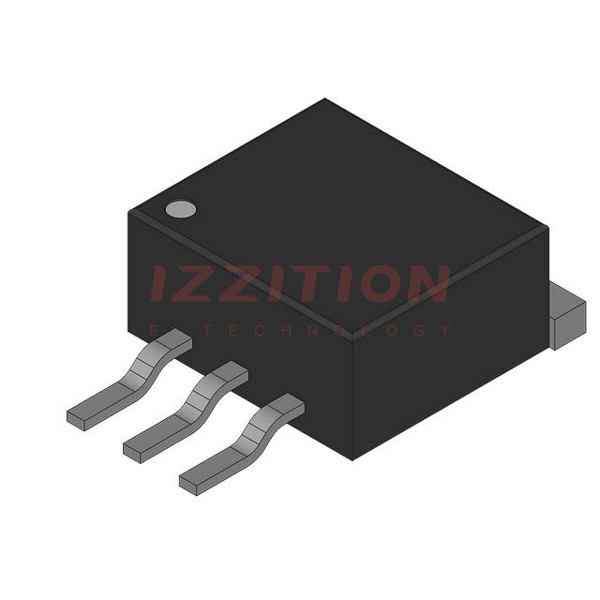

The BUK9226-75A/C1,118 is a high-performance N-CHANNEL TRENCHMOS logic level MOSFET produced by Nexperia USA Inc. (previously part of NXP USA Inc.). This device is designed to offer high efficiency and reliability in various power management applications. It features a low on-state resistance and high current handling capability, making it suitable for demanding electronic systems.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| VDS (Drain-Source Voltage) | 75 | V |
| VGS (Gate-Source Voltage) | 20 | V |
| ID (Continuous Drain Current) | 92 | A |
| RDS(on) (On-State Resistance) | 1.8 | mΩ |
| Ptot (Total Power Dissipation) | 520 | W |
| Tj (Junction Temperature) | -55 to 175 | °C |
| Package | LFPAK56 (PowerSO8) | - |
Key Features
- High current handling capability up to 92 A.
- Low on-state resistance (RDS(on)) of 1.8 mΩ.
- Logic level gate drive for easy interface with microcontrollers and other logic circuits.
- High efficiency due to low conduction losses.
- Ambient operating temperature range from -55°C to 150°C.
- LFPAK56 (PowerSO8) package for improved thermal performance and reduced footprint.
Applications
- Power management in automotive systems.
- Industrial power supplies and motor control.
- Server and data center power systems.
- Renewable energy systems such as solar and wind power.
- High-power DC-DC converters.
Q & A
- What is the maximum drain-source voltage of the BUK9226-75A/C1,118 MOSFET?
The maximum drain-source voltage (VDS) is 75 V.
- What is the continuous drain current rating of this MOSFET?
The continuous drain current (ID) is 92 A.
- What is the on-state resistance of the BUK9226-75A/C1,118?
The on-state resistance (RDS(on)) is 1.8 mΩ.
- What package type is used for the BUK9226-75A/C1,118?
The package type is LFPAK56 (PowerSO8).
- What is the operating temperature range for this MOSFET?
The operating temperature range is from -55°C to 175°C.
- Is the BUK9226-75A/C1,118 suitable for automotive applications?
- Can the BUK9226-75A/C1,118 be used in high-power DC-DC converters?
- What are the benefits of using the LFPAK56 package?
The LFPAK56 package offers improved thermal performance and a reduced footprint.
- Is the BUK9226-75A/C1,118 RoHS compliant?
- Where can I find detailed specifications and datasheets for the BUK9226-75A/C1,118?
Detailed specifications and datasheets can be found on the official Nexperia website, as well as on distributor websites such as Digi-Key, Augswan, and LCSC.
