NXP USA Inc. BC856W/ZL115

Manufacturer No:
BC856W/ZL115
Manufacturer:
NXP USA Inc.
Package:
Bulk
Description:
SMALL SIGNAL BIPOLAR TRANSISTOR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

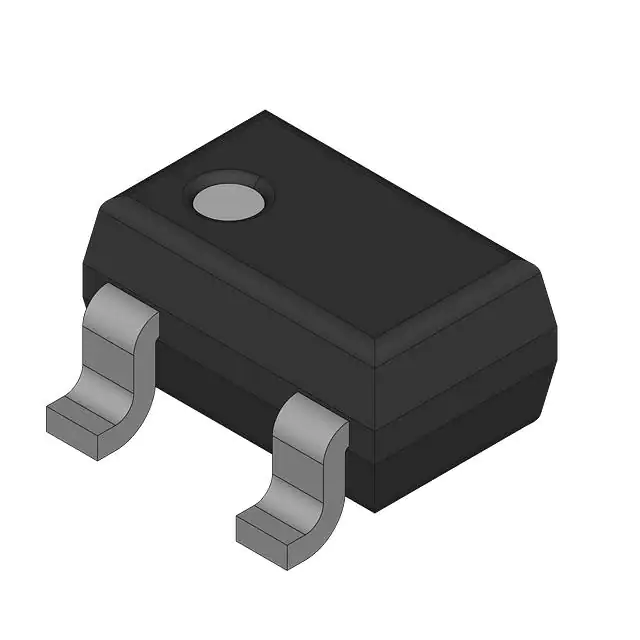

The BC856W/ZL115 is a PNP general-purpose transistor manufactured by NXP USA Inc., now part of Nexperia. This transistor is designed for low current and low voltage applications, making it suitable for a wide range of electronic designs. It is packaged in a small SOT323 (SC-70) surface-mounted device (SMD) plastic package, which is ideal for space-constrained designs.

Key Specifications

Type numberPackageVCEO [max] (V)IC [max] (mA)hFE [min]hFE [max]TJ [max] (°C)fT [min] (MHz)Automotive qualified
BC856WSOT323 (SC-70)65100125475150100No

Key Features

  • PNP general-purpose transistor
  • Low current (max. 100 mA) and low voltage (max. 65 V) capabilities
  • Small SOT323 (SC-70) surface-mounted device (SMD) plastic package
  • Suitable for general-purpose switching and amplification
  • High current gain (hFE) range from 125 to 475
  • Maximum junction temperature of 150°C
  • Minimum transition frequency of 100 MHz

Applications

The BC856W/ZL115 transistor is versatile and can be used in various applications across different industries, including:

  • Automotive systems (though not automotive qualified)
  • Industrial control systems
  • Consumer electronics
  • Mobile devices
  • Wearables
  • General-purpose switching and amplification circuits

Q & A

  1. What is the maximum collector current of the BC856W/ZL115 transistor?
    The maximum collector current is 100 mA.
  2. What is the maximum collector-emitter voltage (VCEO) of the BC856W/ZL115 transistor?
    The maximum collector-emitter voltage is 65 V.
  3. What package type is used for the BC856W/ZL115 transistor?
    The transistor is packaged in a SOT323 (SC-70) surface-mounted device (SMD) plastic package.
  4. What is the minimum current gain (hFE) of the BC856W/ZL115 transistor?
    The minimum current gain is 125.
  5. What is the maximum junction temperature of the BC856W/ZL115 transistor?
    The maximum junction temperature is 150°C.
  6. Is the BC856W/ZL115 transistor automotive qualified?
    No, it is not automotive qualified.
  7. What is the minimum transition frequency of the BC856W/ZL115 transistor?
    The minimum transition frequency is 100 MHz.
  8. What are some common applications of the BC856W/ZL115 transistor?
    Common applications include general-purpose switching and amplification, automotive systems, industrial control systems, consumer electronics, and mobile devices.
  9. Where can I purchase the BC856W/ZL115 transistor?
    You can purchase it from various distributors such as Digi-Key, Mouser, and directly from Nexperia’s sales organization or their network of global and regional distributors.
  10. What is the NPN complement of the BC856W/ZL115 transistor?
    The NPN complement is the BC846W transistor.
