Overview
The BAW56S/SG115 is a high-speed switching diode manufactured by NXP USA Inc. This component is designed for applications requiring fast switching times and low capacitance. It is part of the BAW56 series, known for its high performance in various electronic circuits.
Key Specifications
| Parameter | Value |
|---|---|
| Reverse Voltage (VR) | ≤ 90 V |
| Switching Time (trr) | ≤ 4 ns |
| Capacitance (Cd) | ≤ 2 pF |
| Leakage Current | Low |

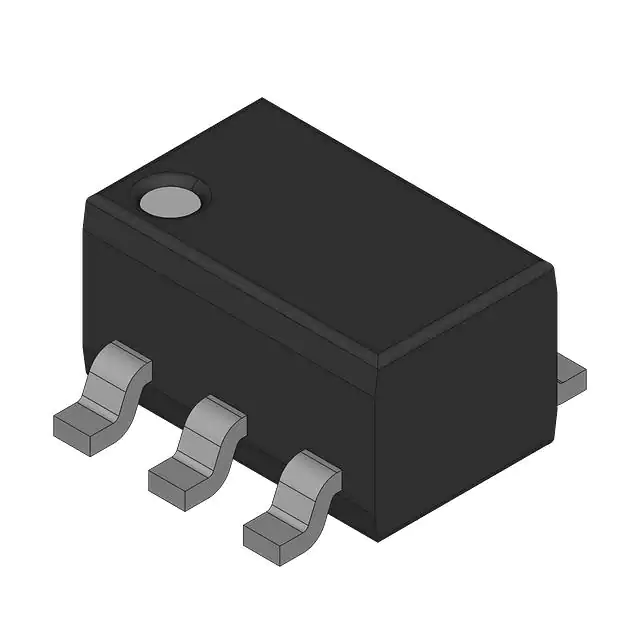

| Package Type | Very small SMD plastic package |
Key Features
- High switching speed with a transition time (trr) of ≤ 4 ns
- Low capacitance of ≤ 2 pF
- Low leakage current
- Reverse voltage rating of ≤ 90 V
- Compact SMD plastic package
Applications
The BAW56S/SG115 is suitable for a variety of high-speed switching applications, including but not limited to:
- High-frequency circuits
- Switching power supplies
- Audio and video equipment
- Automotive electronics
- Industrial control systems
Q & A
- What is the reverse voltage rating of the BAW56S/SG115?
The reverse voltage rating is ≤ 90 V. - What is the switching time (trr) of the BAW56S/SG115?
The switching time (trr) is ≤ 4 ns. - What is the capacitance (Cd) of the BAW56S/SG115?
The capacitance (Cd) is ≤ 2 pF. - What type of package does the BAW56S/SG115 come in?
The BAW56S/SG115 comes in a very small SMD plastic package. - Is the BAW56S/SG115 suitable for high-frequency applications?
Yes, it is suitable for high-frequency applications due to its high switching speed and low capacitance. - Who is the manufacturer of the BAW56S/SG115?
The manufacturer is NXP USA Inc. - What are some common applications of the BAW56S/SG115?
Common applications include high-frequency circuits, switching power supplies, audio and video equipment, automotive electronics, and industrial control systems. - What is the leakage current characteristic of the BAW56S/SG115?
The BAW56S/SG115 has a low leakage current. - Is the BAW56S/SG115 available in bulk quantities?
Yes, it is available in bulk quantities from various distributors. - Where can I find detailed specifications for the BAW56S/SG115?
Detailed specifications can be found on the official NXP website, as well as on distributor websites such as Mouser and DigiPart.
