Overview

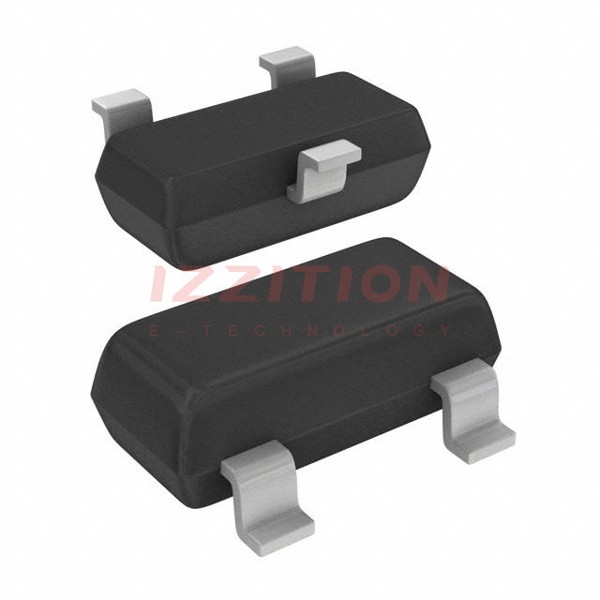

The BAV199/ZLR is a low-leakage double diode produced by NXP USA Inc. This component is designed for surface-mounted applications and is particularly suited for circuits requiring minimal leakage current. The diode is packaged in a SOT-23 case style, making it compact and suitable for a wide range of electronic designs.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Repetitive Reverse Voltage (Vrrm) Max | 85 | V |
| Forward Current (If(AV)) | 160 | mA |
| Forward Voltage (VF) Max | 1.1 | V |
| Reverse Recovery Time (trr) Max | 3 | µs |
| Forward Surge Current (Ifsm) Max | 4.5 | A |
| Operating Temperature Max | 150 | °C |
| Operating Temperature Min | -65 | °C |
| Diode Case Style | SOT-23 | |
| No. of Pins | 3 Pins | |
| Packaging | Cut Tape | |
| Diode Type | Standard Recovery | |
| MSL (Moisture Sensitivity Level) | MSL 1 - Unlimited |
Key Features
- Low Leakage Current: The BAV199/ZLR features a low leakage current of typically 3 pA, making it ideal for applications where minimal current leakage is crucial.
- Fast Switching Time: The diode has a fast switching time of typically 0.8 µs, which is beneficial for high-frequency applications.
- Compact Packaging: The SOT-23 package is compact and suitable for surface-mounted circuits, allowing for efficient use of space on the PCB.
- High Temperature Range: The diode operates over a wide temperature range from -65°C to +150°C, making it versatile for various environmental conditions.
Applications
The BAV199/ZLR is suitable for a variety of applications, including:
- Low-leakage current applications: Ideal for circuits where minimal current leakage is essential, such as in power supply circuits, audio equipment, and other sensitive electronic devices.
- Surface-mounted circuits: The compact SOT-23 package makes it suitable for surface-mounted technology (SMT) assembly lines.
- High-frequency applications: The fast switching time and low leakage current make it suitable for high-frequency circuits and switching applications.
Q & A
- What is the maximum repetitive reverse voltage of the BAV199/ZLR diode?
The maximum repetitive reverse voltage (Vrrm) of the BAV199/ZLR diode is 85 V.
- What is the forward current rating of the BAV199/ZLR diode?
The forward current (If(AV)) rating of the BAV199/ZLR diode is 160 mA.
- What is the typical forward voltage of the BAV199/ZLR diode?
The typical forward voltage (VF) of the BAV199/ZLR diode is 1.1 V.
- What is the reverse recovery time of the BAV199/ZLR diode?
The reverse recovery time (trr) of the BAV199/ZLR diode is typically 3 µs.
- What is the operating temperature range of the BAV199/ZLR diode?
The operating temperature range of the BAV199/ZLR diode is from -65°C to +150°C.
- What is the packaging type of the BAV199/ZLR diode?
The BAV199/ZLR diode is packaged in a SOT-23 case style.
- Is the BAV199/ZLR diode RoHS compliant?
- What are the typical applications of the BAV199/ZLR diode?
The BAV199/ZLR diode is typically used in low-leakage current applications, surface-mounted circuits, and high-frequency applications.
- What is the moisture sensitivity level (MSL) of the BAV199/ZLR diode?
The MSL of the BAV199/ZLR diode is MSL 1 - Unlimited.
- Where can I find the datasheet for the BAV199/ZLR diode?
The datasheet for the BAV199/ZLR diode can be found on the NXP Semiconductors website or through authorized distributors like Mouser Electronics.
