Overview

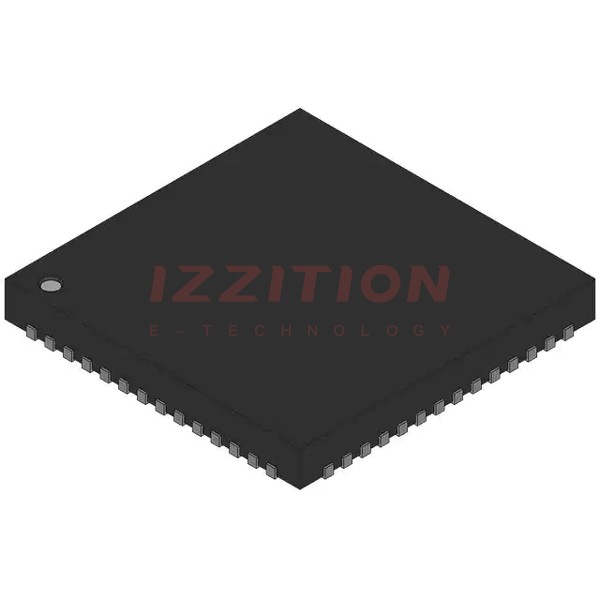

The ADC1413D105HN/C1,5 is a high-performance, 14-bit dual analog-to-digital converter (ADC) manufactured by NXP USA Inc. This component is designed for demanding applications that require precise and simultaneous signal conversion. It features a pipelined architecture and supports both differential and single-ended input types, making it versatile for various signal processing needs.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer Part Number | ADC1413D105HN/C1,5 |
| Manufacturer | NXP USA Inc. |
| Description | ADC 14BIT DUAL 105MSPS 56HVQFN |
| Package / Case | 56-VFQFN Exposed Pad |
| Number of Bits | 14 |
| Number of A/D Converters | 2 |
| Number of Inputs | 2 |
| Input Type | Differential, Single Ended |
| Sampling Rate (Per Second) | 105M |
| Reference Type | External, Internal |
| Ratio - S/H:ADC | 1:1 |
| Architecture | Pipelined |
| Voltage - Supply, Digital | 1.65 V ~ 1.95 V |
| Voltage - Supply, Analog | 2.85 V ~ 3.4 V |
| Operating Temperature | -40°C ~ 85°C |
| Data Interface | JESD204A |
Key Features
- Simultaneous sampling of two analog inputs
- Pipelined architecture for high-speed conversion
- Support for both differential and single-ended input types
- JESD204A data interface for high-speed data transfer
- Operating temperature range of -40°C to 85°C
- Low power consumption with supply voltages of 1.65 V to 1.95 V (digital) and 2.85 V to 3.4 V (analog)
Applications
The ADC1413D105HN/C1,5 is suitable for a variety of applications that require high-speed and precise analog-to-digital conversion. These include:
- Automotive systems for sensor data acquisition
- Medical imaging and diagnostic equipment
- Aerospace and defense systems
- High-speed data acquisition systems
- Industrial control and automation
Q & A
- What is the resolution of the ADC1413D105HN/C1,5?
The ADC1413D105HN/C1,5 has a resolution of 14 bits. - How many analog-to-digital converters are in this component?
This component features two analog-to-digital converters. - What is the maximum sampling rate of the ADC1413D105HN/C1,5?
The maximum sampling rate is 105 MSPS (mega samples per second). - What types of input does the ADC1413D105HN/C1,5 support?
The component supports both differential and single-ended input types. - What is the data interface used by the ADC1413D105HN/C1,5?
The data interface is JESD204A. - What is the operating temperature range of the ADC1413D105HN/C1,5?
The operating temperature range is -40°C to 85°C. - What are the supply voltage ranges for the ADC1413D105HN/C1,5?
The digital supply voltage range is 1.65 V to 1.95 V, and the analog supply voltage range is 2.85 V to 3.4 V. - What is the package type of the ADC1413D105HN/C1,5?
The package type is 56-VFQFN Exposed Pad. - Does the ADC1413D105HN/C1,5 support simultaneous sampling?
Yes, it supports simultaneous sampling of two analog inputs. - What architecture does the ADC1413D105HN/C1,5 use?
The architecture is pipelined.
