Overview

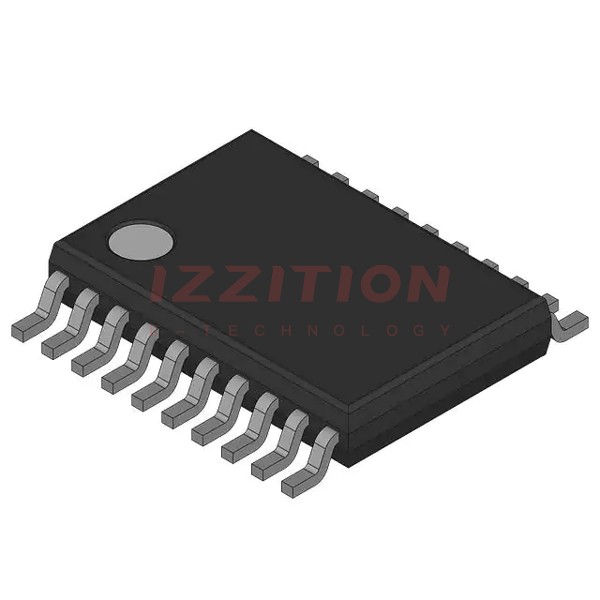

The 74LVT573PW,112 is an octal D-type transparent latch integrated circuit (IC) manufactured by Nexperia. This component is part of the 74LVT series, known for its low-voltage operation and high-speed performance. The IC is packaged in a 20-pin Thin Shrink Small Outline Package (TSSOP) and is designed for surface mount applications.
This device is particularly useful in digital systems where data needs to be stored and transferred efficiently. It operates within a supply voltage range of 2.7 V to 3.6 V, making it suitable for a variety of low-voltage applications.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Nexperia |
| Part Number | 74LVT573PW,112 |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Logic Type | D-Type Transparent Latch |
| Circuit | 8:8 |
| Output Type | Tri-State |
| Supply Voltage | 2.7 V ~ 3.6 V |
| Independent Circuits | 1 |
| Propagation Delay | 6.3 ns |
| Output Current (High, Low) | 32 mA, 64 mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| RoHS Status | Lead free / RoHS Compliant |
Key Features
- Low-Voltage Operation: The IC operates within a supply voltage range of 2.7 V to 3.6 V, making it suitable for low-voltage digital systems.
- High-Speed Performance: The device features a propagation delay of 6.3 ns, ensuring fast data transfer and storage.
- Tri-State Outputs: The outputs are tri-state, allowing for bus-oriented applications where the outputs can be set to a high-impedance state.
- Surface Mount Package: The 20-TSSOP package is designed for surface mount applications, facilitating compact and efficient board design.
- RoHS Compliant: The component is lead-free and RoHS compliant, adhering to environmental regulations.
Applications
- Digital Systems: Suitable for various digital systems requiring data storage and transfer, such as microprocessor and microcontroller systems.
- Bus-Oriented Systems: Ideal for bus-oriented applications due to its tri-state outputs, allowing multiple devices to share the same bus.
- Low-Voltage Designs: Used in designs where low power consumption and low voltage operation are critical, such as in portable electronics and battery-powered devices.
- Automotive and Industrial Systems: Can be used in automotive and industrial applications due to its wide operating temperature range (-40°C to 85°C).
Q & A
- What is the part number of this IC?
The part number is 74LVT573PW,112.
- Who is the manufacturer of this IC?
The manufacturer is Nexperia.
- What is the package type of this IC?
The package type is 20-TSSOP (0.173", 4.40mm Width).
- What is the logic type of this IC?
The logic type is D-Type Transparent Latch.
- What is the supply voltage range of this IC?
The supply voltage range is 2.7 V to 3.6 V.
- What is the propagation delay of this IC?
The propagation delay is 6.3 ns.
- Is this IC RoHS compliant?
Yes, the IC is lead-free and RoHS compliant.
- What is the operating temperature range of this IC?
The operating temperature range is -40°C to 85°C.
- What type of outputs does this IC have?
The outputs are tri-state.
- How many independent circuits does this IC have?
This IC has 1 independent circuit.
