Overview
The 74LVC32APW/C1118 is a quad 2-input OR gate integrated circuit produced by NXP USA Inc. This component is part of the LVC (Low Voltage CMOS) family and is designed to operate in mixed 3.3 V and 5 V environments, making it an ideal choice for translation applications. The device features Schmitt-trigger action at all inputs, which enhances tolerance to slower input rise and fall times.
Key Specifications
Type number | VCC (V) | Logic switching levels | Output drive capability (mA) | tpd (ns) | fmax (MHz) | Number of bits | Power dissipation considerations | Tamb (°C) | Rth(j-a) (K/W) | Ψth(j-top) (K/W) | Rth(j-c) (K/W) | Package name |
---|---|---|---|---|---|---|---|---|---|---|---|---|
74LVC32APW | 1.2 - 3.6 | CMOS/LVTTL | ± 24 | 2.1 | 150 | 4 | Low | -40 to +125 | 112 | 22 | 70 | TSSOP14 |
Key Features
- Quad 2-input OR gate with Schmitt-trigger action at all inputs.
- Wide supply voltage range from 1.2 V to 3.6 V.
- Overvoltage tolerant inputs up to 5.5 V.
- CMOS low power dissipation.
- Direct interface with TTL levels.
- Complies with JEDEC standards: JESD8-7A, JESD8-5A, and JESD8-C/JESD36.
- ESD protection: HBM (ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V) and CDM (ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V).
Applications
The 74LVC32APW/C1118 is versatile and can be used in various applications across different industries, including:
- Automotive systems for signal translation and logic operations.
- Industrial control systems requiring robust and reliable logic gates.
- Consumer electronics for mixed voltage environment applications.
- Mobile and wearable devices where low power consumption is critical.
- Computing and power management systems needing efficient logic operations.
Q & A
- What is the primary function of the 74LVC32APW/C1118?
The primary function is to act as a quad 2-input OR gate. - What is the supply voltage range for the 74LVC32APW/C1118?
The supply voltage range is from 1.2 V to 3.6 V. - Can the inputs of the 74LVC32APW/C1118 be driven from both 3.3 V and 5 V devices?
Yes, the inputs can be driven from both 3.3 V and 5 V devices, making it suitable for mixed voltage environments. - What type of action do the inputs of the 74LVC32APW/C1118 have?
The inputs have Schmitt-trigger action. - What is the maximum output drive capability of the 74LVC32APW/C1118?
The maximum output drive capability is ± 24 mA. - What is the maximum operating frequency of the 74LVC32APW/C1118?
The maximum operating frequency is 150 MHz. - What is the package type of the 74LVC32APW/C1118?

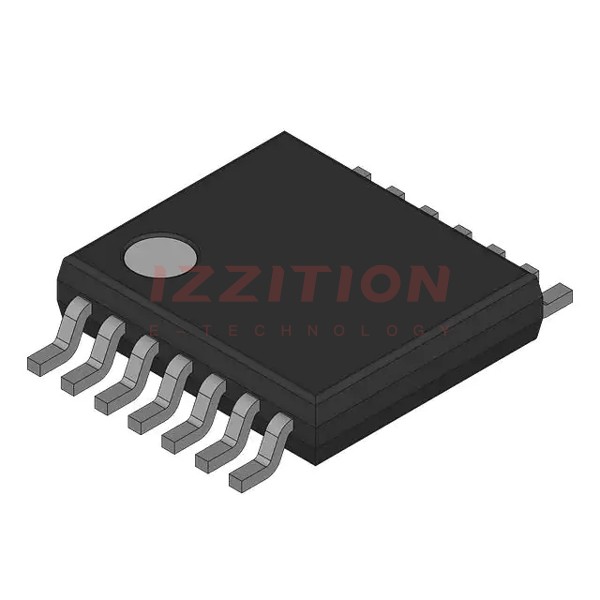

The package type is TSSOP14. - Does the 74LVC32APW/C1118 have ESD protection?
Yes, it has ESD protection: HBM exceeds 2000 V and CDM exceeds 1000 V. - What are the operating temperature ranges for the 74LVC32APW/C1118?
The operating temperature ranges are from -40 °C to +125 °C. - Is the 74LVC32APW/C1118 compliant with any specific standards?
Yes, it complies with JEDEC standards: JESD8-7A, JESD8-5A, and JESD8-C/JESD36.
