Overview
The 74LVC1G384GW/C4125 is a single-pole single-throw (SPST) analog switch from NXP USA Inc., part of the 74LVC1G series. This component is designed to operate within a wide voltage range and is suitable for various applications requiring low power consumption and high switching speeds. It is manufactured using CMOS/LVTTL technology, ensuring compatibility with a broad range of logic levels.
Key Specifications
| Parameter | Value |
|---|---|
| Type Number | 74LVC1G384GW |
| Configuration | SPST-NC |
| VCC (V) | 1.65 - 5.5 |
| Logic Switching Levels | CMOS/LVTTL |
| RON (Ω) | 15 |
| RON(FLAT) (Ω) | 1.5 |
| f (-3dB) (MHz) | 440 |
| THD (%) | 0.001 |
| Operating Temperature (°C) | -40 to 125 |

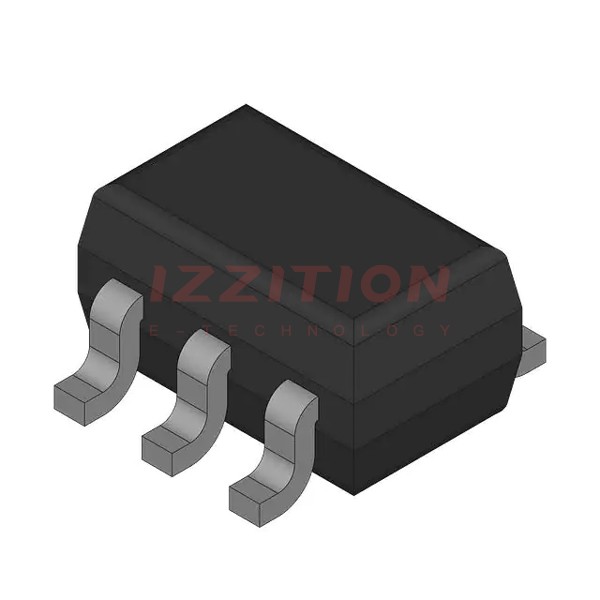

| Package | TSSOP5 (SOT353-1) |
Key Features
- Wide Operating Voltage Range: 1.65 V to 5.5 V, making it versatile for various applications.
- Low On-Resistance: RON of 15 Ω and RON(FLAT) of 1.5 Ω, ensuring minimal signal attenuation.
- High Switching Speed: -3dB bandwidth of 440 MHz.
- Low Power Dissipation: Very low power consumption.
- CMOS/LVTTL Compatibility: Compatible with both CMOS and LVTTL logic levels.
- RoHS Compliant: Lead-free and RoHS compliant, meeting environmental standards.
Applications
The 74LVC1G384GW/C4125 is suitable for a variety of applications, including:
- Signal Switching and Multiplexing: In telecommunications, audio, and video systems.
- Low-Power Electronics: In battery-powered devices and energy-efficient systems.
- Automotive Systems: For applications requiring a wide operating temperature range.
- Industrial Control Systems: Where reliable and fast switching is necessary.
Q & A
- What is the operating voltage range of the 74LVC1G384GW/C4125?
The operating voltage range is from 1.65 V to 5.5 V. - What is the on-resistance of the 74LVC1G384GW/C4125?
The on-resistance (RON) is 15 Ω, and the flat on-resistance (RON(FLAT)) is 1.5 Ω. - What is the maximum operating temperature of the 74LVC1G384GW/C4125?
The maximum operating temperature is 125°C, with a range of -40°C to 125°C. - Is the 74LVC1G384GW/C4125 RoHS compliant?
Yes, it is lead-free and RoHS compliant. - What is the package type of the 74LVC1G384GW/C4125?
The package type is TSSOP5 (SOT353-1). - What are the logic switching levels supported by the 74LVC1G384GW/C4125?
The component supports CMOS/LVTTL logic levels. - What is the bandwidth of the 74LVC1G384GW/C4125?
The -3dB bandwidth is 440 MHz. - What are some common applications of the 74LVC1G384GW/C4125?
Common applications include signal switching and multiplexing, low-power electronics, automotive systems, and industrial control systems. - Is the 74LVC1G384GW/C4125 suitable for high-speed applications?
Yes, it is suitable for high-speed applications due to its high switching speed. - Where can I find the datasheet for the 74LVC1G384GW/C4125?
You can find the datasheet on the official NXP Semiconductors website or through authorized distributors.
