Overview
The 74LVC1G32GF/S505125 is a single 2-input OR gate integrated circuit produced by NXP USA Inc. This component is part of the LVC (Low-Voltage CMOS) family, known for its low power consumption and high noise immunity. It is designed to operate in mixed 3.3 V and 5 V environments, making it versatile for various electronic systems.
Key Specifications
| Parameter | Value |
|---|---|
| Supply Voltage Range | 1.65 V to 5.5 V |
| Input Voltage Range | Up to 5.5 V |
| Output Drive | ±24 mA (VCC = 3.0 V) |
| Operating Temperature Range | -40 °C to +85 °C and -40 °C to +125 °C |

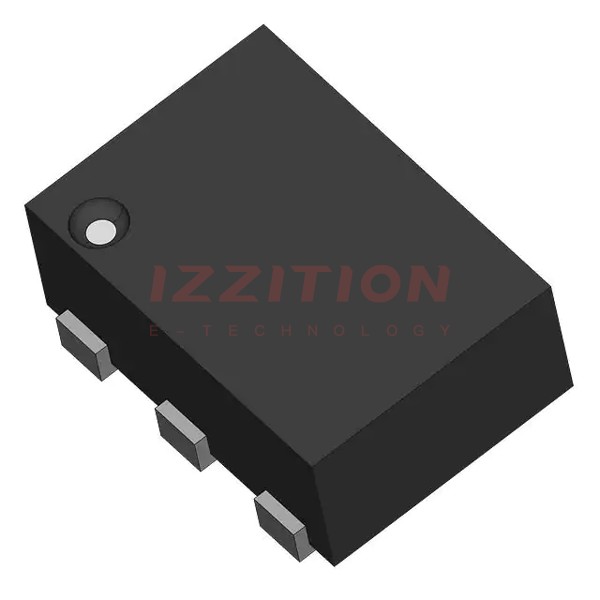

| Package Type | XSON6 (leadless extremely thin small outline package) |
| ESD Protection | HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V, CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V |
| Latch-up Performance | Exceeds 250 mA |
Key Features
- Wide supply voltage range from 1.65 V to 5.5 V
- Overvoltage tolerant inputs up to 5.5 V
- High noise immunity
- CMOS low power dissipation
- IOFF circuitry provides partial power-down mode operation
- Schmitt-trigger action at all inputs for slower input rise and fall times tolerance
- Direct interface with TTL levels
- Complies with JEDEC standards: JESD8-7, JESD8-5, JESD8-B/JESD36
- Multiple package options available
Applications
The 74LVC1G32GF/S505125 is suitable for a variety of applications, including:
- Mixed 3.3 V and 5 V environments requiring level translation
- Partial power-down applications where IOFF circuitry is beneficial
- Systems requiring high noise immunity and low power consumption
- Automotive, industrial, and IoT devices where robust and reliable logic functions are necessary
Q & A
- What is the supply voltage range of the 74LVC1G32GF/S505125?
The supply voltage range is from 1.65 V to 5.5 V. - Can the inputs be driven from both 3.3 V and 5 V devices?
Yes, the inputs can be driven from either 3.3 V or 5 V devices. - What is the output drive capability of this IC?
The output drive capability is ±24 mA at VCC = 3.0 V. - What is the operating temperature range of this component?
The operating temperature range is -40 °C to +85 °C and -40 °C to +125 °C. - What type of package does the 74LVC1G32GF/S505125 come in?
The component comes in an XSON6 (leadless extremely thin small outline package). - Does the 74LVC1G32GF/S505125 have ESD protection?
Yes, it has ESD protection exceeding 2000 V (HBM) and 1000 V (CDM). - What is the latch-up performance of this IC?
The latch-up performance exceeds 250 mA. - Is the 74LVC1G32GF/S505125 compliant with any industry standards?
Yes, it complies with JEDEC standards: JESD8-7, JESD8-5, JESD8-B/JESD36. - What are some common applications for the 74LVC1G32GF/S505125?
It is used in mixed 3.3 V and 5 V environments, partial power-down applications, and systems requiring high noise immunity and low power consumption. - Does the 74LVC1G32GF/S505125 support partial power-down mode?
Yes, it supports partial power-down mode through IOFF circuitry.
