Overview

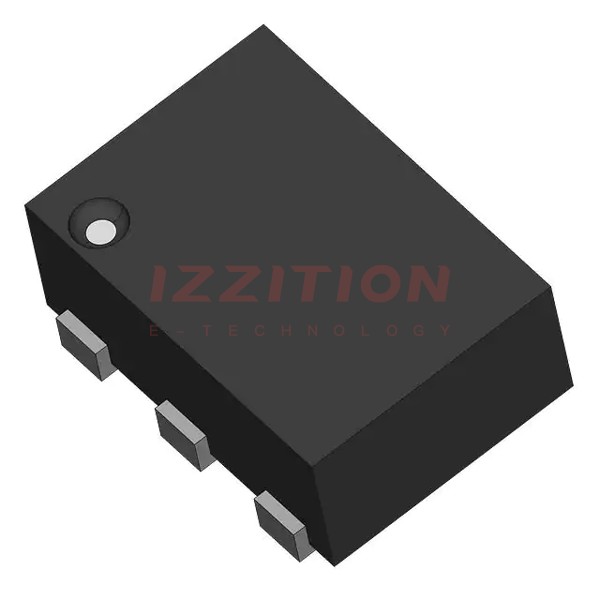

The 74LVC1G00GF/S500132 is a single 2-input NAND gate produced by NXP USA Inc. This component is part of the LVC (Low Voltage CMOS) family, known for its versatility and compatibility in various voltage environments. The device can operate with supply voltages ranging from 1.65 V to 5.5 V, making it suitable for use in mixed 3.3 V and 5 V systems. It features Schmitt-trigger action at all inputs, enhancing noise immunity and tolerance to slower input rise and fall times.
Key Specifications
| Parameter | Value |
|---|---|
| Type Number | 74LVC1G00GF |
| Package Name | XSON6 (SOT891) |
| Supply Voltage Range | 1.65 V to 5.5 V |
| Input Voltage Range | Up to 5.5 V |
| Output Drive | ±24 mA (VCC = 3.0 V) |
| Latch-up Performance | Exceeds 250 mA |
| Operating Temperature Range | -40 °C to +85 °C and -40 °C to +125 °C |
| ESD Protection | HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V, CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V |
Key Features
- Wide supply voltage range from 1.65 V to 5.5 V
- Overvoltage tolerant inputs up to 5.5 V
- High noise immunity due to Schmitt-trigger action at all inputs
- CMOS low power dissipation
- IOFF circuitry for partial power-down mode operation
- Direct interface with TTL levels
- Compliance with JEDEC standards: JESD8-7, JESD8-5, JESD8C, and JESD36
- Multiple package options
Applications
The 74LVC1G00GF/S500132 is suitable for a variety of applications, including:
- Mixed 3.3 V and 5 V systems where voltage translation is required
- Partial power-down applications where IOFF circuitry is beneficial
- Systems requiring high noise immunity and low power consumption
- TTL-compatible circuits and other digital logic applications
Q & A
- What is the primary function of the 74LVC1G00GF/S500132?
The primary function is to act as a single 2-input NAND gate.
- What is the supply voltage range for this component?
The supply voltage range is from 1.65 V to 5.5 V.
- Can the inputs be driven from both 3.3 V and 5 V devices?
- What is the significance of Schmitt-trigger action in this component?
Schmitt-trigger action at all inputs enhances noise immunity and tolerance to slower input rise and fall times.
- What is the IOFF circuitry used for?
The IOFF circuitry provides partial power-down mode operation, disabling the output to prevent backflow current when the device is powered down.
- What are the ESD protection levels for this component?
The component has HBM ESD protection exceeding 2000 V and CDM ESD protection exceeding 1000 V.
- What are the operating temperature ranges for this component?
The operating temperature ranges are -40 °C to +85 °C and -40 °C to +125 °C.
- Is the component compliant with any specific standards?
- What package options are available for this component?
The component is available in multiple package options, including the XSON6 (SOT891) package.
- What is the significance of CMOS low power dissipation in this component?
CMOS low power dissipation reduces the overall power consumption of the system, making it energy-efficient.
