Overview

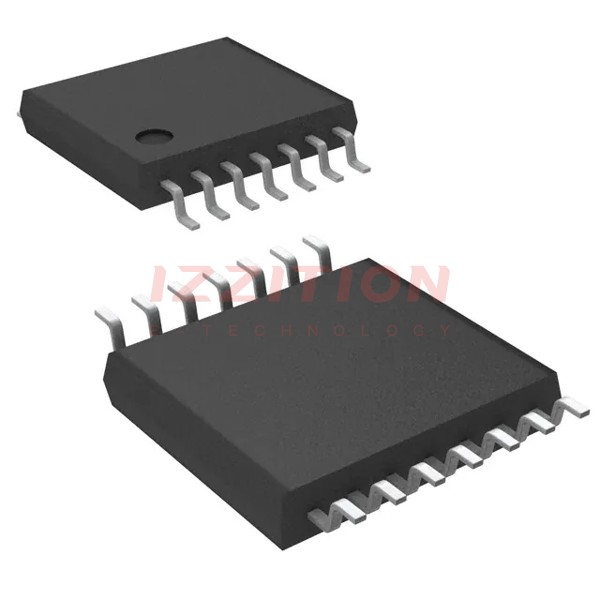

The 74LVC126APW/AUJ, produced by Nexperia (formerly part of NXP USA Inc.), is a quad buffer/line driver with 3-state outputs. This device is designed to operate in mixed 3.3 V and 5 V environments, making it versatile for various electronic designs. It features 5 V tolerant inputs and outputs, allowing it to interface directly with TTL levels. The 74LVC126APW/AUJ is housed in a TSSOP14 package and is fully specified for partial power-down applications, enhancing its suitability for power-sensitive designs.
Key Specifications
| Type number | VCC (V) | Logic switching levels | Output drive capability (mA) | fmax (MHz) | Number of bits | Power dissipation considerations | Tamb (°C) | Package name |
|---|---|---|---|---|---|---|---|---|
| 74LVC126APW | 1.2 - 3.6 | CMOS/LVTTL | ± 24 | 175 | 4 | Low | -40 to +125 | TSSOP14 |
Key Features
- 5 V Tolerant Inputs and Outputs: Allows the device to be used in mixed 3.3 V and 5 V environments.
- 3-State Outputs: Controlled by the output enable inputs (nOE), allowing the outputs to assume a high impedance OFF-state when nOE is HIGH.
- Schmitt-Trigger Action: Tolerant of slower input rise and fall times.
- Wide Supply Voltage Range: From 1.2 V to 3.6 V.
- Low Power Consumption: CMOS technology ensures low power consumption.
- ESD Protection: HBM (Human Body Model) exceeds 2000 V and CDM (Charged Device Model) exceeds 1000 V.
- Partial Power Down Capability: The IOFF circuitry disables the output, preventing backflow current when the device is powered down.
Applications
The 74LVC126APW/AUJ is suitable for a wide range of applications across various industries, including:
- Automotive: For systems requiring robust and reliable logic functions.
- Industrial: In control systems, automation, and power management.
- Consumer Electronics: In devices such as smartphones, tablets, and other portable electronics.
- Computing and Networking: For interface and signal buffering in computer peripherals and network devices.
- Wearables and Mobile Devices: Due to its low power consumption and compact package.
Q & A
- What is the primary function of the 74LVC126APW/AUJ?
The primary function is to act as a quad buffer/line driver with 3-state outputs.
- What is the supply voltage range for this device?
The supply voltage range is from 1.2 V to 3.6 V.
- Can the 74LVC126APW/AUJ be used in mixed 3.3 V and 5 V environments?
Yes, it has 5 V tolerant inputs and outputs.
- What is the maximum output drive capability of the 74LVC126APW/AUJ?
The maximum output drive capability is ± 24 mA.
- What type of ESD protection does the device offer?
The device offers HBM protection exceeding 2000 V and CDM protection exceeding 1000 V.
- What is the operating temperature range for this device?
The operating temperature range is from -40 °C to +125 °C.
- What package type is the 74LVC126APW/AUJ available in?
The device is available in a TSSOP14 package.
- Is the 74LVC126APW/AUJ suitable for partial power-down applications?
Yes, it is fully specified for partial power-down applications using IOFF circuitry.
- What logic switching levels does the device support?
The device supports CMOS/LVTTL logic switching levels.
- What is the maximum frequency of operation for the 74LVC126APW/AUJ?
The maximum frequency of operation is 175 MHz.
