Overview
The 74LV4051PW/AU118 is an 8-channel analog multiplexer/demultiplexer produced by Nexperia, although it is often associated with NXP due to the historical connection between the two companies. This device is part of the low-voltage Si-gate CMOS family and is pin and function compatible with the 74HC4051 and 74HCT4051. It features three digital select inputs (S0 to S2), an active-LOW enable input (E), eight independent inputs/outputs (Y0 to Y7), and a common input/output (Z). The device operates with a supply voltage range of 1.0 V to 6.0 V, making it versatile for various low-voltage applications.
Key Specifications
| Parameter | Value |
|---|---|
| Type Number | 74LV4051PW |
| Configuration | SP8T-Z |
| VCC (V) | 1.0 - 6.0 |
| Logic Switching Levels | TTL |
| RON (Ω) | 135 |
| RON(FLAT) (Ω) | 35 |
| f (-3dB) (MHz) | 200 |
| THD (%) | 0.4 |
| Xtalk (dB) | -60 |
| Power Dissipation Considerations | Very low |
| Tamb (°C) | -40 to 125 |
| Rth(j-a) (K/W) | 116 |
| Ψth(j-top) (K/W) | 2.5 |
| Rth(j-c) (K/W) | 44.4 |

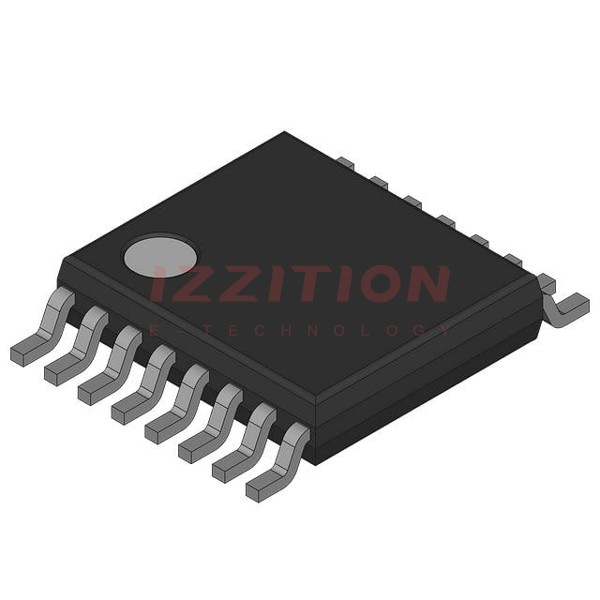

| Package Name | TSSOP16 |
Key Features
- 8-channel analog multiplexer/demultiplexer with three digital select inputs and an active-LOW enable input.
- Low-voltage operation: VCC range from 1.0 V to 6.0 V.
- Low ON-state resistance: RON of 135 Ω and RON(FLAT) of 35 Ω.
- High bandwidth: f (-3dB) of 200 MHz.
- Low power dissipation.
- Compact TSSOP16 package, offering up to 60% space saving over equivalent leaded packages.
Applications
The 74LV4051PW/AU118 is suitable for a variety of applications requiring analog signal switching and routing, such as:
- Audio and video signal processing.
- Medical equipment.
- Industrial control systems.
- Automotive systems.
- Communication devices.
Q & A
- What is the primary function of the 74LV4051PW/AU118? The primary function is to act as an 8-channel analog multiplexer/demultiplexer.
- What is the voltage range for VCC? The VCC range is from 1.0 V to 6.0 V.
- How many digital select inputs does the device have? It has three digital select inputs (S0 to S2).
- What is the typical ON-state resistance? The typical ON-state resistance (RON) is 135 Ω.
- What is the bandwidth of the device? The bandwidth is up to 200 MHz (-3dB).
- Is the device RoHS compliant? Yes, the device is RoHS compliant.
- What is the operating temperature range? The operating temperature range is from -40°C to 125°C.
- What package type is used for the 74LV4051PW/AU118? The device is packaged in a TSSOP16 package.
- Is the device pin and function compatible with other models? Yes, it is pin and function compatible with the 74HC4051 and 74HCT4051.
- How does the active-LOW enable input work? With the enable input (E) LOW, one of the eight switches is selected; with E HIGH, all switches are in the high-impedance OFF-state.
