Overview
The 74HC1G08GW/C4125, produced by NXP USA Inc., is a high-speed, single 2-input AND gate integrated circuit. It is part of the 74HC series of logic gates, which are designed to operate from a single power supply over a wide range of voltages. This device is suitable for various digital logic applications requiring a simple, reliable, and efficient logic function.
Key Specifications
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Supply Voltage (VCC) | 2.0 | 5.0 | 6.0 | V |
| Input Voltage (VI) | 0 | - | VCC | V |
| Output Voltage (VO) | 0 | - | VCC | V |
| Ambient Temperature (Tamb) | -40 | - | 125 | °C |
| Propagation Delay (tpd) | - | 23 | 27 | ns |
| Output Current (IO) | - | - | 2.6 | mA |
| Supply Current (ICC) | - | - | 20 | µA |

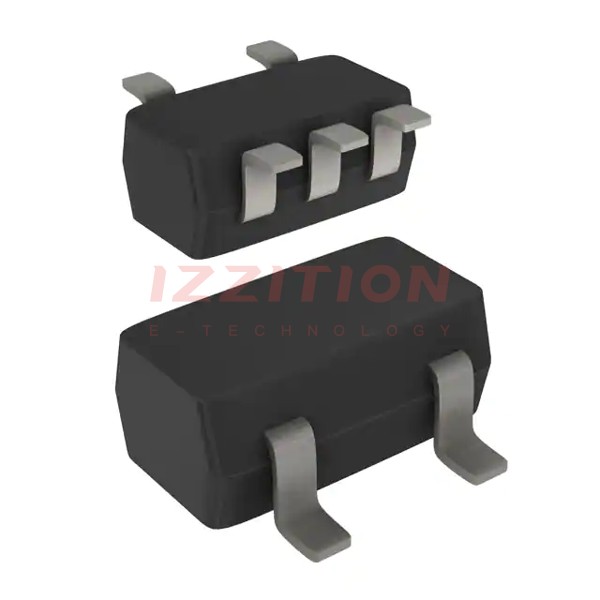

| Package Type | - | - | 5-TSSOP (SOT353-1) | - |
Key Features
- High-speed Si-gate CMOS device providing a 2-input AND function.
- Operating voltage range of 2 V to 6 V.
- Low quiescent current of 20 µA (max).
- High output current capability of 2.6 mA (high and low).
- Wide input logic level range of 0.5 V to 4.2 V.
- Fast propagation delay of 23 ns (max) at 6 V, 50 pF load.
- Symmetrical output impedance and balanced propagation delays.
- High noise immunity and low power dissipation.
- Compact and space-saving 5-pin TSSOP package.
Applications
- Digital logic circuits.
- Microcontroller interfacing.
- Signal conditioning and processing.
- Industrial automation and control systems.
- Automotive electronics.
- Consumer electronics.
Q & A
- What is the 74HC1G08GW/C4125 used for?
The 74HC1G08GW/C4125 is a single 2-input AND gate used in various digital logic applications.
- What is the operating voltage range of the 74HC1G08GW/C4125?
The operating voltage range is from 2 V to 6 V.
- What is the maximum propagation delay of the 74HC1G08GW/C4125?
The maximum propagation delay is 27 ns at 6 V with a 50 pF load.
- What is the package type of the 74HC1G08GW/C4125?
The package type is 5-TSSOP (SOT353-1).
- What are the key features of the 74HC1G08GW/C4125?
Key features include high-speed operation, low quiescent current, high output current capability, and high noise immunity.
- What are the typical applications of the 74HC1G08GW/C4125?
Typical applications include digital logic circuits, microcontroller interfacing, signal conditioning, industrial automation, automotive electronics, and consumer electronics.
- Is the 74HC1G08GW/C4125 RoHS compliant?
- What is the operating temperature range of the 74HC1G08GW/C4125?
The operating temperature range is from -40°C to 125°C.
- How does the 74HC1G08GW/C4125 compare to other logic gates in the 74HC series?
The 74HC1G08GW/C4125 is similar to other 74HC series logic gates but is specifically a single 2-input AND gate with high-speed CMOS technology.
- What are the advantages of using the 74HC1G08GW/C4125?
Advantages include proven performance and reliability, efficient and cost-effective design, and easy integration into existing digital circuits.
