Overview
The 74HC1G00GW/C4125 is a single 2-input NAND gate integrated circuit produced by NXP USA Inc. This component is part of the 74HC series, known for its high-speed CMOS logic. It is designed to operate over a wide supply voltage range, making it versatile for various electronic designs. The device includes input clamp diodes, enabling the use of current limiting resistors to interface inputs to voltages in excess of VCC, which enhances its compatibility and reliability in different applications.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Number of Inputs | 2 | - |
| Voltage Supply Range | 2.0 V to 6.0 V | V |
| High-level Input Voltage (VIH) | 1.5 V (VCC = 2.0 V), 3.15 V (VCC = 4.5 V), 4.2 V (VCC = 6.0 V) | V |
| Low-level Input Voltage (VIL) | 0.5 V (VCC = 2.0 V), 1.35 V (VCC = 4.5 V), 1.8 V (VCC = 6.0 V) | V |
| High-level Output Voltage (VOH) | 1.9 V (VCC = 2.0 V), 4.4 V (VCC = 4.5 V), 5.9 V (VCC = 6.0 V) | V |
| Low-level Output Voltage (VOL) | 0.1 V (VCC = 2.0 V, 4.5 V, 6.0 V) | V |
| Quiescent Supply Current (ICC) | 10 µA to 20 µA | µA |
| Input Capacitance (CI) | 1.5 pF | pF |
| Operating Temperature Range | -40°C to +85°C, -40°C to +125°C | °C |
| Package Type | 5-TSSOP (SOT353-1) | - |
Key Features
- Wide supply voltage range from 2.0 V to 6.0 V, making it suitable for a variety of applications.
- CMOS input levels for the 74HC1G00, and TTL input levels for the 74HCT1G00.
- Symmetrical output impedance and balanced propagation delays.
- High noise immunity and low power dissipation.
- ESD protection: HBM JESD22-A114E exceeds 2000 V, MM JESD22-A115-A exceeds 200 V.
- Input clamp diodes to enable the use of current limiting resistors.
- Multiple package options available.
Applications
The 74HC1G00GW/C4125 is versatile and can be used in a wide range of electronic designs across various industries, including:
- Automotive systems for logic and control functions.
- Industrial automation and control systems.
- Consumer electronics such as mobile devices, wearables, and home appliances.
- Computing and data processing equipment.
- Power management and control circuits.
Q & A
- What is the primary function of the 74HC1G00GW/C4125?
The primary function of the 74HC1G00GW/C4125 is to act as a single 2-input NAND gate.
- What is the voltage supply range for this IC?
The voltage supply range is from 2.0 V to 6.0 V.
- What are the input levels for the 74HC1G00?
The input levels for the 74HC1G00 are CMOS levels.
- What is the operating temperature range for this IC?
The operating temperature range is from -40°C to +85°C and from -40°C to +125°C.

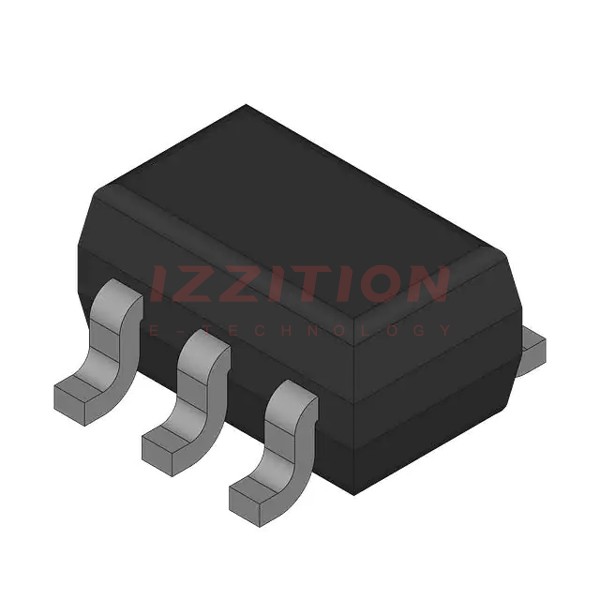

- What type of package does the 74HC1G00GW/C4125 come in?
The 74HC1G00GW/C4125 comes in a 5-TSSOP (SOT353-1) package.
- Does the IC have ESD protection?
- What are some common applications for this IC?
- What is the quiescent supply current for this IC?
The quiescent supply current is between 10 µA and 20 µA.
- Does the IC have input clamp diodes?
- What are the high-level and low-level output voltages for this IC?
The high-level output voltage (VOH) ranges from 1.9 V to 5.9 V, and the low-level output voltage (VOL) is approximately 0.1 V, depending on the supply voltage.
