Overview
The 74HC132PW/S400118 is a quad 2-input NAND Schmitt Trigger integrated circuit produced by Nexperia (previously part of NXP USA Inc.). This component is part of the 74HC series, known for its high-speed CMOS logic family. It integrates voltage level translation with Boolean functions, making it versatile for various digital logic applications.
Key Specifications
| Parameter | Value |
|---|---|

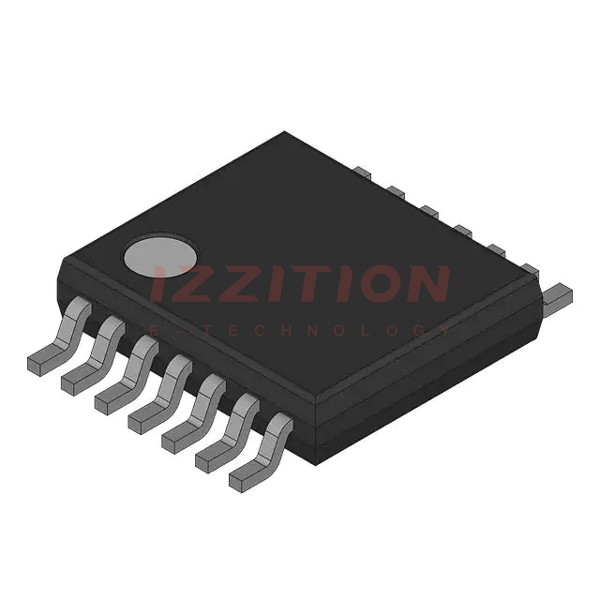

| Package Type | TSSOP-14 |
| Number of Gates | 4 |
| Number of Inputs per Gate | 2 |
| Logic Function | NAND Schmitt Trigger |
| Supply Voltage Range | 2.0 V to 6.0 V |
| Static Power Consumption | Low |
| Dynamic Power Consumption | Low |
| Operating Temperature Range | -40°C to 125°C |
Key Features
- Quad 2-input NAND Schmitt Trigger gates
- High-speed CMOS logic family
- Low static and dynamic power consumption
- Small footprint with up to 60% space saving over equivalent leaded packages
- Voltage level translation capability
- Compliant with JEDEC standard JESD7A
Applications
The 74HC132PW/S400118 is suitable for a variety of digital logic applications, including:
- Level translation and voltage conversion
- Signal conditioning and noise reduction due to Schmitt Trigger functionality
- General-purpose logic circuits in consumer, industrial, and automotive systems
- Embedded systems and microcontroller interfaces
Q & A
- What is the package type of the 74HC132PW/S400118?
The package type is TSSOP-14. - How many gates does the 74HC132PW/S400118 contain?
The component contains 4 gates. - What is the logic function of each gate in the 74HC132PW/S400118?
Each gate is a 2-input NAND Schmitt Trigger. - What is the supply voltage range for the 74HC132PW/S400118?
The supply voltage range is from 2.0 V to 6.0 V. - What are the key benefits of using the 74HC132PW/S400118 in terms of power consumption?
The component has low static and dynamic power consumption. - What is the operating temperature range of the 74HC132PW/S400118?
The operating temperature range is from -40°C to 125°C. - Is the 74HC132PW/S400118 suitable for automotive applications?
Yes, it is suitable for automotive applications due to its robust specifications and compliance with relevant standards. - What is the advantage of the Schmitt Trigger function in the 74HC132PW/S400118?
The Schmitt Trigger function helps in noise reduction and signal conditioning. - Can the 74HC132PW/S400118 be used for level translation?
Yes, it can be used for voltage level translation. - Is the 74HC132PW/S400118 compliant with any specific industry standards?
Yes, it is compliant with JEDEC standard JESD7A.
