Overview
The 74AUP1G06GW-Q100125, produced by NXP USA Inc., is a low-power inverter with an open-drain output. This device is part of the AUP (Advanced Ultra-low Power) logic family, known for its ultra-low power consumption and high noise immunity. It features Schmitt-trigger action at all inputs, making it tolerant of slower input rise and fall times. The device operates over a wide supply voltage range from 0.8 V to 3.6 V, making it versatile for various applications.
Key Specifications
| Parameter | Value |
|---|---|
| Supply Voltage (VCC) | 0.8 V to 3.6 V |
| Logic Switching Levels | CMOS |
| Output Drive Capability | 1.9 mA |
| Maximum Frequency (fmax) | 70 MHz |
| Number of Bits | 1 |
| Power Dissipation | Ultra-low |
| Ambient Temperature (Tamb) | -40 °C to +125 °C |

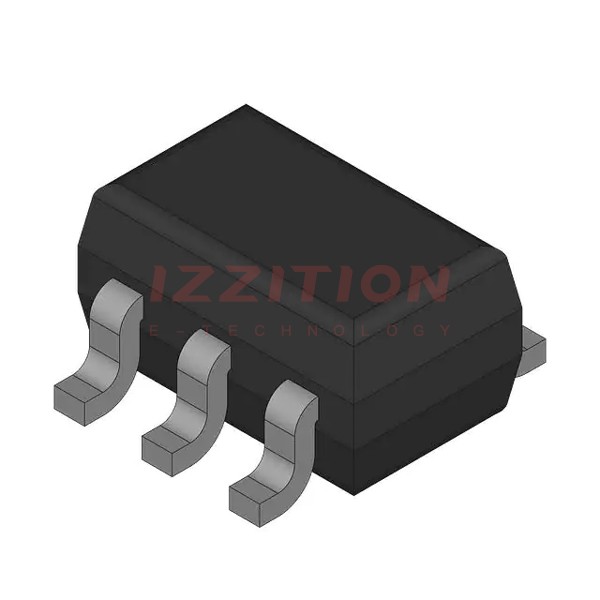

| Package Type | TSSOP5 (SOT353-1) |
| ESD Protection | HBM: ANSI/ESDA/JEDEC JS-001 class 3A exceeds 5000 V, CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V |
Key Features
- Low static and dynamic power consumption across the entire VCC range.
- High noise immunity due to Schmitt-trigger action at all inputs.
- Wide supply voltage range from 0.8 V to 3.6 V.
- IOFF circuitry for partial power-down mode operation, preventing backflow current when powered down.
- Overvoltage tolerant inputs up to 3.6 V.
- Low noise overshoot and undershoot (< 10% of VCC).
- Compliance with JEDEC standards (JESD8-12, JESD8-11, JESD8-7, JESD8-5, JESD8C).
Applications
The 74AUP1G06GW-Q100125 is suitable for a variety of applications where low power consumption and high noise immunity are critical. These include:
- Portable and battery-powered devices.
- Low-power logic circuits.
- Automotive and industrial control systems.
- Consumer electronics requiring low power and high reliability.
Q & A
- What is the supply voltage range of the 74AUP1G06GW-Q100125?
The supply voltage range is from 0.8 V to 3.6 V. - What is the maximum frequency of operation for this device?
The maximum frequency is 70 MHz. - What type of logic switching levels does this device use?
The device uses CMOS logic switching levels. - What is the output drive capability of the 74AUP1G06GW-Q100125?
The output drive capability is 1.9 mA. - What is the ambient temperature range for this device?
The ambient temperature range is from -40 °C to +125 °C. - What type of package does the 74AUP1G06GW-Q100125 come in?
The device comes in a TSSOP5 (SOT353-1) package. - Does the 74AUP1G06GW-Q100125 have ESD protection?
Yes, it has ESD protection: HBM exceeds 5000 V and CDM exceeds 1000 V. - What is the purpose of the IOFF circuitry in this device?
The IOFF circuitry provides partial power-down mode operation, preventing backflow current when the device is powered down. - Is the 74AUP1G06GW-Q100125 compliant with any industry standards?
Yes, it complies with JEDEC standards (JESD8-12, JESD8-11, JESD8-7, JESD8-5, JESD8C). - What are some typical applications for the 74AUP1G06GW-Q100125?
Typical applications include portable and battery-powered devices, low-power logic circuits, automotive and industrial control systems, and consumer electronics.
