Overview
The 74AHC1G07GW-Q100125 is a high-speed Si-gate CMOS buffer with an open-drain output, manufactured by NXP USA Inc. This device is part of the AHC/VHC/H/U/V series and is designed for high-performance digital applications. It offers non-inverting buffer functionality and can be used to implement active-LOW wired-OR or active-HIGH wired-AND functions when connected to other open-drain outputs.
Key Specifications
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| VCC (Supply Voltage) | 2.0 | 5.0 | 5.5 | V |
| VI (Input Voltage) | 0 | - | 5.5 | V |
| VO (Output Voltage) - Active Mode | 0 | - | VCC | V |
| Tamb (Ambient Temperature) | -40 | - | 125 | °C |
| ICC (Supply Current) | - | - | 20 | μA |
| IOZ (OFF-state Output Current) | - | - | 10 | μA |
| CI (Input Capacitance) | - | - | 10 | pF |
| Ptot (Total Power Dissipation) | - | - | 250 | mW |
Key Features
- High-speed Si-gate CMOS technology
- Non-inverting buffer with open-drain output
- CMOS input switching levels and supply voltage range of 2 V to 5.5 V
- High noise immunity and low power dissipation

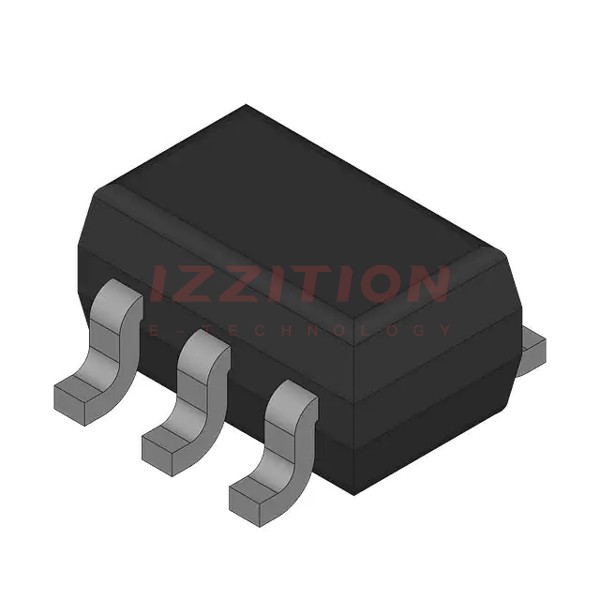

- Available in SOT353-1 (TSSOP5) and SOT753 (SC-74A) package options
- ESD protection: HBM JESD22-A114E exceeds 2000 V, MM JESD22-A115-A exceeds 200 V, CDM JESD22-C101C exceeds 1000 V
- Specified from -40°C to +125°C
Applications
The 74AHC1G07GW-Q100125 is suitable for a variety of digital applications, including:
- High-speed digital circuits requiring low power consumption
- Wired-OR and wired-AND logic functions
- Buffering and signal amplification in digital systems
- Automotive and industrial control systems where high reliability and temperature stability are required
Q & A
- What is the primary function of the 74AHC1G07GW-Q100125?
The primary function is to act as a non-inverting buffer with an open-drain output.
- What are the supply voltage ranges for this device?
The supply voltage range is from 2 V to 5.5 V.
- What are the package options available for this device?
The device is available in SOT353-1 (TSSOP5) and SOT753 (SC-74A) package options.
- What is the temperature range for this device?
The device is specified to operate from -40°C to +125°C.
- What kind of ESD protection does this device offer?
The device offers ESD protection exceeding 2000 V for HBM, 200 V for MM, and 1000 V for CDM.
- How does the device handle input and output voltages?
The device can handle input voltages up to 5.5 V and output voltages up to VCC.
- What is the typical supply current for this device?
The typical supply current is up to 20 μA.
- Can this device be used in automotive applications?
Yes, it is suitable for automotive and industrial control systems due to its high reliability and temperature stability.
- How does the open-drain output function?
The open-drain output can be connected to other open-drain outputs to implement active-LOW wired-OR or active-HIGH wired-AND functions.
- What is the input capacitance of the device?
The input capacitance is up to 10 pF.
