Overview

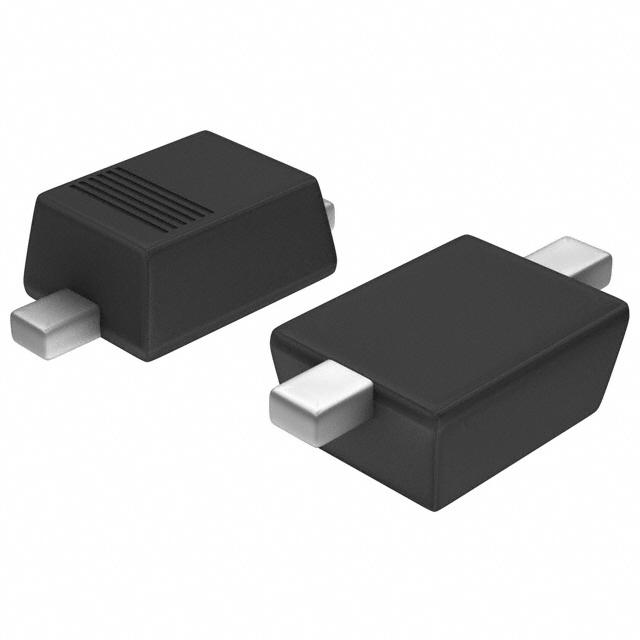

The TDZ5V6JF is a Zener diode produced by Nexperia USA Inc., a global semiconductor company known for its extensive portfolio of discrete semiconductor products. This diode is designed to provide voltage regulation and protection in various electronic circuits. With its compact SOD323F package, it is suitable for a wide range of applications where space is limited.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Zener Voltage | 5.6 | V |
| Power Dissipation | 375 mW | mW |
| Package Type | SOD323F (SC-90) | - |
| Operating Temperature Range | -65 to 150 | °C |
| RoHS Compliance | Yes | - |
Key Features
- Compact Package: The TDZ5V6JF comes in a SOD323F (SC-90) package, making it ideal for applications where space is limited.
- Voltage Regulation: Provides stable voltage regulation with a Zener voltage of 5.6V.
- Low Power Dissipation: Capable of dissipating up to 375 mW, suitable for low to moderate power applications.
- Wide Operating Temperature Range: Operates within a temperature range of -65°C to 150°C, ensuring reliability in various environmental conditions.
- RoHS Compliance: Compliant with RoHS regulations, making it suitable for use in environmentally friendly designs.
Applications
- Voltage Regulation: Used in voltage regulator circuits to maintain a stable voltage level.
- Overvoltage Protection: Provides protection against overvoltage conditions in electronic circuits.
- Signal Conditioning: Can be used in signal conditioning circuits to stabilize voltage levels.
- Consumer Electronics: Suitable for use in consumer electronics such as mobile devices, wearables, and other portable electronics.
- Industrial and Automotive Systems: Can be used in industrial and automotive systems where reliable voltage regulation is critical.
Q & A
- What is the Zener voltage of the TDZ5V6JF diode?
The Zener voltage of the TDZ5V6JF diode is 5.6V.
- What is the power dissipation capability of the TDZ5V6JF?
The TDZ5V6JF can dissipate up to 375 mW.
- What package type does the TDZ5V6JF come in?
The TDZ5V6JF comes in a SOD323F (SC-90) package.
- Is the TDZ5V6JF RoHS compliant?
Yes, the TDZ5V6JF is RoHS compliant.
- What is the operating temperature range of the TDZ5V6JF?
The operating temperature range of the TDZ5V6JF is -65°C to 150°C.
- Where can I find the datasheet for the TDZ5V6JF?
You can find the datasheet for the TDZ5V6JF on the Nexperia website or through authorized distributors like Digi-Key or Mouser.
- What are some common applications of the TDZ5V6JF?
The TDZ5V6JF is commonly used in voltage regulation, overvoltage protection, signal conditioning, consumer electronics, and industrial and automotive systems.
- How do I ensure proper handling and storage of the TDZ5V6JF?
Ensure proper handling and storage by following the guidelines provided in the datasheet and adhering to standard ESD protection practices.
- Can the TDZ5V6JF be used in high-temperature environments?
Yes, the TDZ5V6JF can operate in high-temperature environments up to 150°C.
- Is the TDZ5V6JF suitable for use in automotive applications?
Yes, the TDZ5V6JF can be used in automotive applications due to its robust specifications and reliability.
