Overview
The PSMN1R2-25YLD,115 is a high-performance N-channel MOSFET produced by Nexperia USA Inc. This device is part of Nexperia's NextPower technology series, designed to offer ultra-low on-resistance and high efficiency, particularly at higher switching frequencies. It is packaged in the SC-100, SOT-669 format, making it suitable for a variety of power management applications.
Key Specifications
| Parameter | Value |
|---|---|
| Drain to Source Voltage (Vdss) | 25 V |
| Continuous Drain Current (ID) | 100 A (Tc) |
| On-Resistance (Rds(on)) | 1.2 mΩ @ 25 A, 10 V |
| Gate Threshold Voltage (Vgs(th)) | ±20 V |
| Input Capacitance (Ciss) | 4327 pF @ 12 V |
| Output Capacitance (Coss) | 60.3 nC @ 10 V |

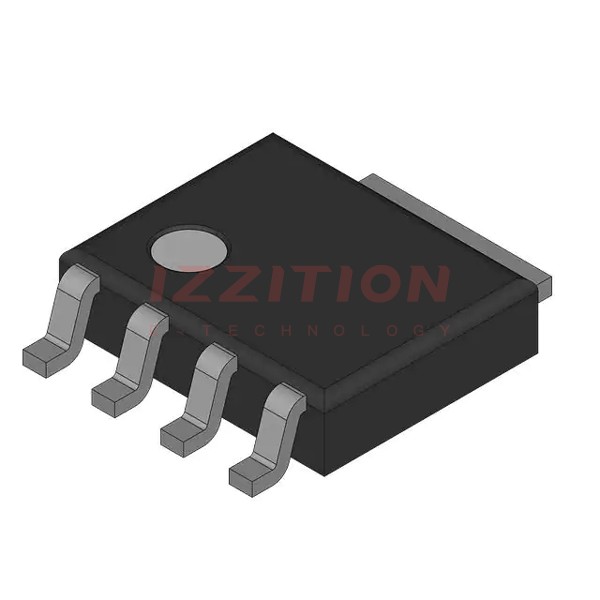

| Package | SC-100, SOT-669 |
| ROHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5 V, 10 V |
Key Features
- Ultra-low on-resistance (Rds(on)) of 1.2 mΩ @ 25 A, 10 V, enhancing system efficiency.
- Low gate charge (QG), gate-drain charge (QGD), and output charge (QOSS) for high system efficiency at higher switching frequencies.
- 100% Avalanche tested at I(AS) = 169 A, ensuring robustness and reliability.
- NextPower technology for improved performance and efficiency.
- Surface mount package (SC-100, SOT-669) for easy integration into various designs.
Applications
The PSMN1R2-25YLD,115 is suitable for a wide range of power management applications, including:
- Power supplies and DC-DC converters.
- Motor control and drive systems.
- Industrial automation and control systems.
- Automotive systems requiring high reliability and efficiency.
- Renewable energy systems such as solar and wind power.
Q & A
- What is the maximum drain to source voltage (Vdss) of the PSMN1R2-25YLD,115?
The maximum drain to source voltage (Vdss) is 25 V. - What is the continuous drain current (ID) of this MOSFET?
The continuous drain current (ID) is 100 A (Tc). - What is the on-resistance (Rds(on)) of this device?
The on-resistance (Rds(on)) is 1.2 mΩ @ 25 A, 10 V. - Is the PSMN1R2-25YLD,115 ROHS compliant?
Yes, it is ROHS3 compliant. - What is the moisture sensitivity level (MSL) of this component?
The moisture sensitivity level (MSL) is 1 (Unlimited). - What are the key benefits of using NextPower technology in this MOSFET?
The key benefits include ultra-low on-resistance, low gate charge, and high system efficiency at higher switching frequencies. - What are some common applications for the PSMN1R2-25YLD,115?
Common applications include power supplies, DC-DC converters, motor control systems, industrial automation, automotive systems, and renewable energy systems. - What is the package type of the PSMN1R2-25YLD,115?
The package type is SC-100, SOT-669. - Is the PSMN1R2-25YLD,115 100% avalanche tested?
Yes, it is 100% avalanche tested at I(AS) = 169 A. - What are the drive voltage specifications for this MOSFET?
The drive voltage specifications are 4.5 V and 10 V for maximum and minimum Rds(on) respectively.
