Overview

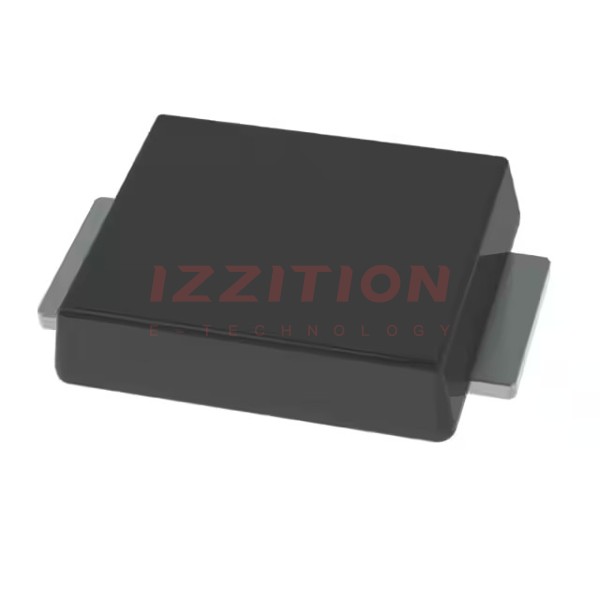

The PMEG10030ELP-QX is a 100 V, 3 A low leakage current Schottky barrier rectifier produced by Nexperia USA Inc. This component is part of Nexperia’s extensive portfolio of diodes, which are designed to meet the demands of various electronic applications. The PMEG10030ELP-QX is encapsulated in a SOD128 small and flat lead Surface-Mounted Device (SMD) package, making it suitable for space-constrained designs. It features an integrated guard ring for stress protection, enhancing its reliability and performance in diverse operating conditions.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Type number | PMEG10030ELP | - |
| Package | SOD128 (CFP5) | - |
| Size (mm) | 3.8 x 2.5 x 1 | mm |
| VR [max] | 100.0 | V |
| IF [max] | 3.0 | A |
| Number of functions | Single | - |
| Configuration | Single | - |
| VF [typ] @ 25°C | 710.0 | mV |
| VF [max] | 770.0 | mV |
| IR [typ] @ 25°C | 0.11 | µA |
| IR [max] @ 25°C | 0.45 | µA |
| Cd [max] | 200.0 | pF |
| Automotive qualified | No | - |
Key Features
- Low Leakage Current: The PMEG10030ELP-QX has a low reverse leakage current, making it suitable for applications where power efficiency is crucial.
- Integrated Guard Ring: The component features an integrated guard ring for stress protection, enhancing its reliability and performance under various operating conditions.
- Compact SOD128 Package: Encapsulated in a small and flat lead SOD128 package, this rectifier is ideal for space-constrained designs.
- High Forward Current Capability: With a maximum forward current of 3 A, this rectifier can handle high current requirements in various applications.
- Low Forward Voltage Drop: The typical forward voltage drop of 710 mV at 25°C ensures minimal power loss during operation.
Applications
The PMEG10030ELP-QX is versatile and can be used in a wide range of electronic applications, including:
- Automotive Systems: Although not automotive qualified, it can still be used in non-critical automotive applications due to its robust design.
- Industrial Power Supplies: Suitable for use in power supplies, DC-DC converters, and other industrial power management systems.
- Consumer Electronics: Used in various consumer electronic devices such as TVs, computers, and smartphones.
- Medical Devices: Can be employed in medical equipment where reliable and efficient power management is essential.
Q & A
- What is the maximum reverse voltage of the PMEG10030ELP-QX?
The maximum reverse voltage (VR [max]) is 100 V.
- What is the maximum forward current of the PMEG10030ELP-QX?
The maximum forward current (IF [max]) is 3 A.
- What type of package does the PMEG10030ELP-QX come in?
The component is encapsulated in a SOD128 (CFP5) package.
- What is the typical forward voltage drop of the PMEG10030ELP-QX at 25°C?
The typical forward voltage drop (VF [typ] @ 25°C) is 710 mV.
- Is the PMEG10030ELP-QX automotive qualified?
No, the PMEG10030ELP-QX is not automotive qualified.
- What is the reverse leakage current of the PMEG10030ELP-QX at 25°C?
The typical reverse leakage current (IR [typ] @ 25°C) is 0.11 µA, and the maximum is 0.45 µA.
- What is the maximum capacitance of the PMEG10030ELP-QX?
The maximum capacitance (Cd [max]) is 200 pF.
- Where can I purchase the PMEG10030ELP-QX?
The PMEG10030ELP-QX can be purchased from various distributors such as Digi-Key, Mouser, and Nexperia’s official website.
- What are the dimensions of the SOD128 package?
The dimensions of the SOD128 package are 3.8 x 2.5 x 1 mm.
- What is the purpose of the integrated guard ring in the PMEG10030ELP-QX?
The integrated guard ring provides stress protection, enhancing the component’s reliability and performance under various operating conditions.
