Overview

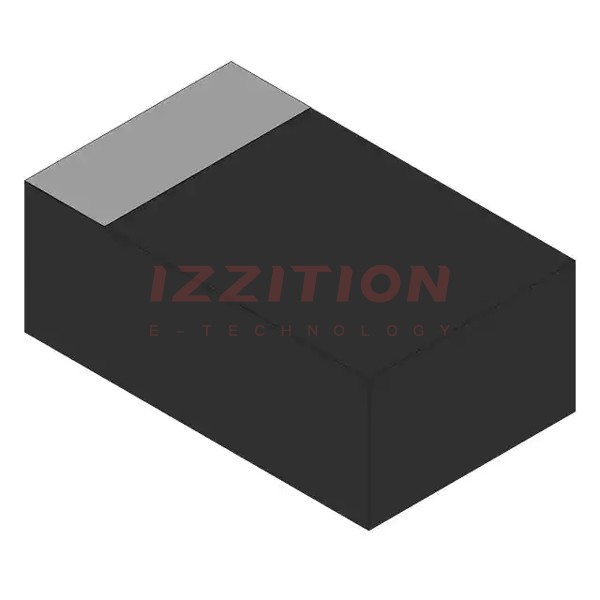

The PESD5V0V1BLD is a very low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode manufactured by Nexperia USA Inc. This device is designed to protect one signal line from damage caused by ESD and other transients. It is housed in a SOD882D leadless ultra small Surface-Mounted Device (SMD) plastic package, featuring visible and solderable side pads. This component is particularly useful in applications where high-speed signal integrity and robust ESD protection are crucial.
Key Specifications
| Parameter | Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Cd (Diode Capacitance) | f = 1 MHz, V = 0 V, T = 25°C | - | 11 | 13 | pF |
| VRWM (Reverse Working Voltage) | T = 25°C | - | - | 5 | V |
| VCL (Clamping Voltage) | - | - | 12.5 | - | V |
| PPPM (Max. Peak Pulse Power) | - | - | 45 | - | W |
| VESD (ESD Protection) | IEC 61000-4-2 level 4 | - | 30 | - | kV |
| IRM (Reverse Leakage Current) | - | - | < 1 | - | nA |
Key Features
- Bidirectional ESD protection of one signal line
- Ultra small SMD plastic package (SOD882D)
- Solderable side pads
- Package height: typically 0.37 mm
- Very low diode capacitance: Cd = 11 pF
- Low clamping voltage: VCL = 12.5 V
- Max. peak pulse power: PPPM = 45 W
- ESD protection up to 30 kV IEC 61000-4-2 level 4
- AEC-Q101 qualified
Applications
- Computers and peripherals
- Audio and video equipment
- Cellular handsets and accessories
- SIM card protection
- Communication systems
- Portable electronics
- 10/100 Mbit/s Ethernet
- FireWire
Q & A
- What is the primary function of the PESD5V0V1BLD?
The PESD5V0V1BLD is designed to provide bidirectional ESD protection for one signal line, protecting it from damage caused by ESD and other transients.
- What type of package does the PESD5V0V1BLD use?
The device is housed in a SOD882D leadless ultra small Surface-Mounted Device (SMD) plastic package.
- What is the typical diode capacitance of the PESD5V0V1BLD?
The typical diode capacitance is 11 pF.
- What is the maximum peak pulse power the PESD5V0V1BLD can handle?
The maximum peak pulse power is 45 W.
- What is the clamping voltage of the PESD5V0V1BLD?
The clamping voltage is 12.5 V.
- Is the PESD5V0V1BLD qualified for automotive applications?
Yes, the PESD5V0V1BLD is AEC-Q101 qualified.
- What are the typical applications of the PESD5V0V1BLD?
It is used in computers and peripherals, audio and video equipment, cellular handsets, SIM card protection, communication systems, portable electronics, Ethernet, and FireWire.
- What is the ESD protection level of the PESD5V0V1BLD according to IEC 61000-4-2?
The device provides ESD protection up to 30 kV according to IEC 61000-4-2 level 4.
- What is the package height of the PESD5V0V1BLD?
The package height is typically 0.37 mm.
- Are the side pads of the PESD5V0V1BLD solderable?
Yes, the side pads are solderable.
