Overview
The PESD5V0U4BW,115 is a TVS (Transient Voltage Suppressor) diode produced by Nexperia USA Inc. This component is designed to provide ESD (Electrostatic Discharge) protection for electronic circuits. It is part of Nexperia's automotive series, complying with the AEC-Q101 standard, which ensures reliability and performance in harsh automotive environments.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Nexperia USA Inc. |
| Product Number | PESD5V0U4BW,115 |

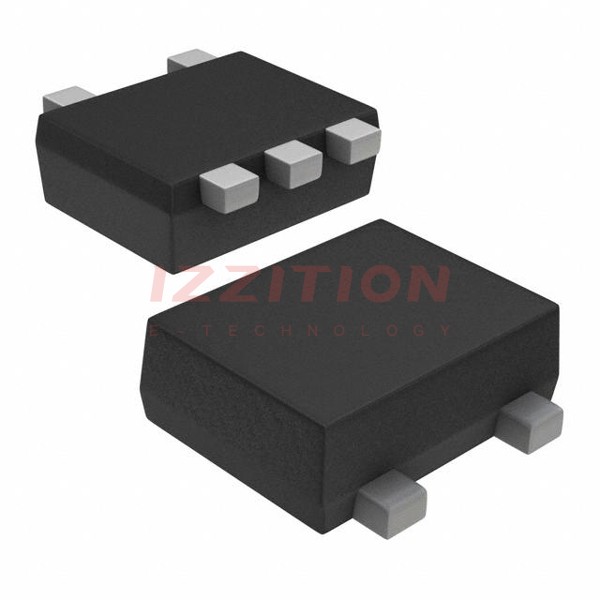

| Package | SOT-665, Tape & Reel (TR) |
| Mounting Type | Surface Mount |
| Working Voltage (VWM) | 5 V |
| Peak Pulse Power (PPP) | 30 W |
| Clamping Voltage (VCL) | 13 V |
| Diode Type | Zener |
| Compliance | AEC-Q101 |
Key Features
- ESD protection for up to four lines
- Low diode capacitance
- Ultra-low clamping voltage (VCL = 13 V)
- Peak pulse power of 30 W
- Compliant with AEC-Q101 standard for automotive applications
- Surface mount package (SOT-665) for easy integration
Applications
The PESD5V0U4BW,115 is primarily used in automotive applications where robust ESD protection is crucial. It can be integrated into various automotive systems, including infotainment, safety, and control systems, to protect against transient voltage surges and electrostatic discharges.
Q & A
- What is the primary function of the PESD5V0U4BW,115?
The primary function is to provide ESD protection for electronic circuits. - What is the working voltage of this TVS diode?
The working voltage (VWM) is 5 V. - What is the peak pulse power rating of this component?
The peak pulse power (PPP) is 30 W. - What is the clamping voltage of the PESD5V0U4BW,115?
The clamping voltage (VCL) is 13 V. - Is this component suitable for automotive applications?
Yes, it is compliant with the AEC-Q101 standard for automotive use. - What type of package does this component come in?
It comes in a SOT-665 package, available in Tape & Reel (TR). - Why is low diode capacitance important in this component?
Low diode capacitance minimizes the impact on high-frequency signals, ensuring better performance in sensitive circuits. - Can this component protect multiple lines?
Yes, it can protect up to four lines against ESD. - Where can I purchase the PESD5V0U4BW,115?
You can purchase it from various distributors such as Digi-Key, Mouser Electronics, and Avnet. - What is the standard lead time for this component?
The standard lead time is typically 8 weeks.
