Overview

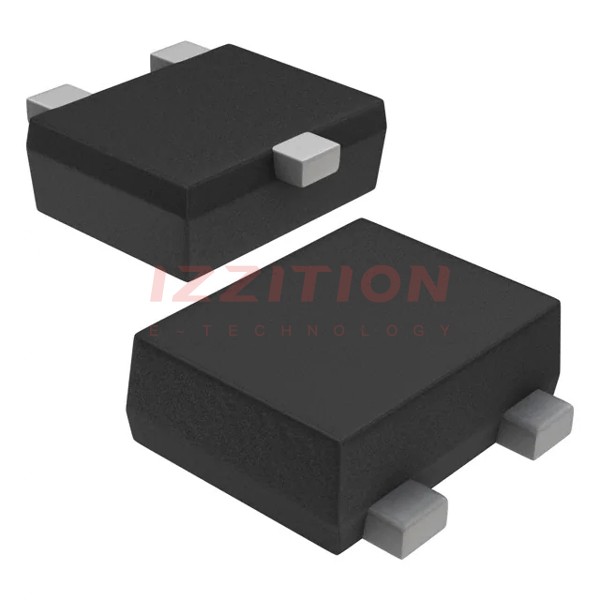

The PESD5V0S2UQ,115 is a Transient Voltage Suppressor (TVS) diode manufactured by Nexperia USA Inc. This component is designed to provide protection against electrostatic discharge (ESD) and other transient voltage events. It is packaged in the SOT-663 format, making it suitable for surface mount applications. The device is RoHS compliant, ensuring it meets environmental regulations by being free from certain hazardous substances.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Clamp (Max) @ IPP | 20V |
| Voltage - Breakdown (Min) | 6.4V |
| Number of Channels | 2 |
| Type | Zener |
| Package | SOT-663 |
| Packaging | Tape & Reel (TR) |
| Operating Temperature | -65°C ~ 150°C (TA) |
| Mounting Type | Surface Mount |
| Peak Pulse Current (10 / 1000μs) | 15A (8/20µs) |
| Capacitance @ Frequency | 150pF @ 1MHz |
| Peak Pulse Power | 150W |
Key Features
- Provides protection against ESD and transient voltage events.
- Unidirectional TVS diode with a breakdown voltage of 6.4V.
- Peak pulse current of 15A (8/20µs).
- Peak pulse power of 150W.
- RoHS compliant, ensuring environmental sustainability.
- SOT-663 package for surface mount applications.
- Wide operating temperature range: -65°C to 150°C.
Applications
The PESD5V0S2UQ,115 is suitable for general-purpose ESD protection in various electronic devices. It can be used in applications such as:
- Consumer electronics
- Industrial control systems
- Automotive electronics
- Communication devices
- Any system requiring protection against transient voltage events.
Q & A
- What is the primary function of the PESD5V0S2UQ,115?
The primary function is to provide protection against electrostatic discharge (ESD) and transient voltage events.
- What is the package type of the PESD5V0S2UQ,115?
The package type is SOT-663.
- Is the PESD5V0S2UQ,115 RoHS compliant?
Yes, it is RoHS compliant.
- What is the peak pulse current of the PESD5V0S2UQ,115?
The peak pulse current is 15A (8/20µs).
- What is the operating temperature range of the PESD5V0S2UQ,115?
The operating temperature range is -65°C to 150°C.
- What is the breakdown voltage of the PESD5V0S2UQ,115?
The breakdown voltage is 6.4V (min).
- How many channels does the PESD5V0S2UQ,115 have?
The device has 2 channels.
- What is the peak pulse power of the PESD5V0S2UQ,115?
The peak pulse power is 150W.
- What type of diode is the PESD5V0S2UQ,115?
It is a Zener diode.
- How is the PESD5V0S2UQ,115 packaged?
It is packaged in Tape & Reel (TR) format.
