Overview

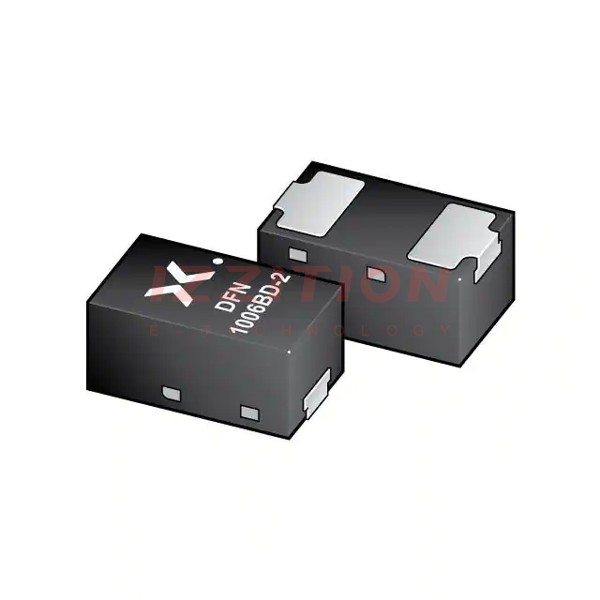

The PESD24VS1ULSYL is a unidirectional ESD (Electrostatic Discharge) protection diode manufactured by Nexperia USA Inc. This component is designed to provide robust protection against electrical surges and spikes, ensuring the reliability and longevity of electronic devices. It is packaged in a compact DFN1006BD-2 surface mount package, making it suitable for a wide range of applications where space is limited.
Key Specifications
| Parameter | Value |
|---|---|
| Working Voltage (VWM) | 24 V |
| Clamping Voltage (VC) | 60 V |
| Peak Pulse Current (Ipp) (8/20 µs) | 4.5 A |
| Package Type | DFN1006BD-2 |
| Package Dimensions | 1.0 x 0.6 x 0.5 mm |
Key Features
- Compact Package: The DFN1006BD-2 package is highly space-efficient, making it ideal for modern electronic designs where miniaturization is crucial.
- High Surge Capability: The diode can handle peak pulse currents of up to 4.5 A (8/20 µs), providing robust protection against transient voltages.
- Low Leakage Current: Ensures minimal impact on the overall power consumption of the device.
- High Reliability: Designed to meet stringent reliability standards, ensuring long-term performance and durability.
Applications
The PESD24VS1ULSYL is suitable for a variety of applications, including:
- Consumer Electronics: Protects sensitive components in smartphones, tablets, and other portable devices.
- Automotive Electronics: Used in automotive systems to safeguard against electrical surges and spikes.
- Industrial Equipment: Provides ESD protection in industrial control systems, sensors, and other equipment.
- Medical Devices: Ensures the reliability of medical devices by protecting against electrostatic discharges.
Q & A
- What is the working voltage of the PESD24VS1ULSYL?
The working voltage (VWM) of the PESD24VS1ULSYL is 24 V. - What is the clamping voltage of this diode?
The clamping voltage (VC) is 60 V. - What is the peak pulse current rating of this diode?
The peak pulse current (Ipp) is 4.5 A (8/20 µs). - What package type is used for the PESD24VS1ULSYL?
The package type is DFN1006BD-2. - What are the dimensions of the DFN1006BD-2 package?
The dimensions are 1.0 x 0.6 x 0.5 mm. - What is the primary function of the PESD24VS1ULSYL?
The primary function is to provide ESD protection for electronic devices. - In which applications is the PESD24VS1ULSYL commonly used?
It is commonly used in consumer electronics, automotive electronics, industrial equipment, and medical devices. - Why is the compact package of the PESD24VS1ULSYL important?
The compact package is important because it allows for space-efficient design in modern electronic devices. - How does the PESD24VS1ULSYL ensure reliability in electronic devices?
It ensures reliability by providing robust protection against electrical surges and spikes, thus safeguarding the longevity of the device. - Where can I find detailed specifications and datasheets for the PESD24VS1ULSYL?
Detailed specifications and datasheets can be found on the Nexperia website, Digi-Key, Mouser Electronics, and other authorized distributors.
