Overview
The LSF0204GU12X is a 4-bit bidirectional multi-voltage level translator produced by Nexperia USA Inc. This component is designed for open-drain and push-pull applications, supporting translation speeds of up to 100 MHz. It is part of Nexperia’s extensive portfolio of analog and logic ICs, which are used across various industries including automotive, industrial, power, computing, consumer, mobile, and wearables.
Key Specifications
| Type number | VCC(A) (V) | VCC(B) (V) | Logic switching levels | Output drive capability (mA) | tpd (ns) | Nr of bits | Power dissipation considerations | Tamb (°C) | Package name | Category |
|---|---|---|---|---|---|---|---|---|---|---|
| LSF0204GU12 | 0.8 - 5.0 | 0.8 - 5.0 | CMOS | + 64 | 0.6 | 4 | low | -40~125 | XQFN12 (SOT1174-1) | Bi-directional | AutoSense |
Key Features
- Bidirectional multi-voltage level translation
- Supports up to 100 MHz translation speed
- Open-drain and push-pull output configurations
- CMOS logic switching levels
- Low power dissipation
- Operating temperature range: -40°C to 125°C

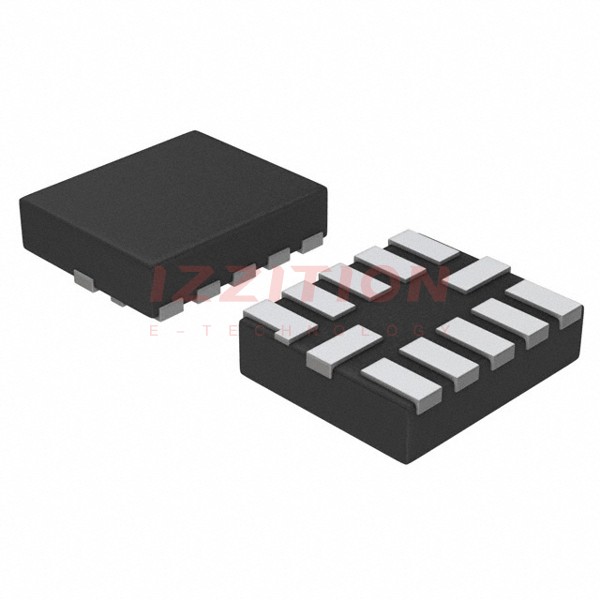

- XQFN12 (SOT1174-1) package with 12 terminals
Applications
The LSF0204GU12X is versatile and can be used in a variety of applications across different industries, including:
- Automotive systems for voltage level translation between different voltage domains.
- Industrial control systems where multiple voltage levels are required.
- Consumer electronics for interfacing between different voltage logic levels.
- Mobile and wearable devices to manage power and signal integrity.
- Computing and server systems for reliable voltage translation.
Q & A
- What is the primary function of the LSF0204GU12X?
The primary function is to perform bidirectional multi-voltage level translation. - What is the maximum translation speed supported by the LSF0204GU12X?
It supports up to 100 MHz translation speed. - What are the supported output configurations for the LSF0204GU12X?
It supports both open-drain and push-pull output configurations. - What is the operating voltage range for VCC(A) and VCC(B)?
The operating voltage range for both VCC(A) and VCC(B) is 0.8 V to 5.0 V. - What is the output drive capability of the LSF0204GU12X?
The output drive capability is +64 mA. - What is the propagation delay (tpd) of the LSF0204GU12X?
The propagation delay is 0.6 ns. - How many bits does the LSF0204GU12X support?
It supports 4 bits. - What is the package type and dimensions of the LSF0204GU12X?
The package type is XQFN12 (SOT1174-1) with dimensions 2 mm x 1.7 mm x 0.5 mm. - What is the operating temperature range of the LSF0204GU12X?
The operating temperature range is -40°C to 125°C. - Where can I purchase the LSF0204GU12X?
You can purchase it from Nexperia’s official website, or through their global and regional distributors such as Digi-Key, Mouser, and others.
