Overview

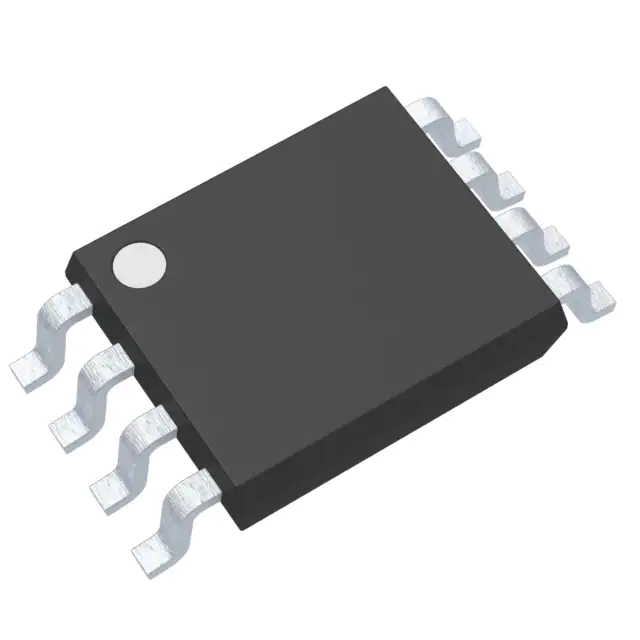

The LSF0102DCH is a voltage level translator produced by Nexperia USA Inc. This component is designed to facilitate bidirectional voltage translation between two different voltage domains, making it an essential part of various electronic systems. It features auto-direction sensing and autosense translation, eliminating the need for additional direction pins. The device is available in an 8-VSSOP package and supports a wide range of operating temperatures.
Key Specifications
| Category | Description |
|---|---|
| Manufacturer | Nexperia USA Inc. |
| Package / Case | 8-VSSOP (0.091", 2.30mm Width) |
| Voltage - VCCA | 0.95 V ~ 3.6 V |
| Voltage - VCCB | 0.95 V ~ 5.5 V |
| Data Rate | 100MHz |
| Translator Type | Voltage Level |
| Number of Circuits | 1 |
| Channels per Circuit | 2 |
| Channel Type | Bidirectional |
| Output Type | Open Drain, Push-Pull |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
Key Features
- Auto-direction sensing and autosense translation: Eliminates the need for additional direction pins, simplifying the design and reducing component count.
- Bidirectional voltage translation: Supports translation between two different voltage domains without the need for external components.
- High data rate: Supports up to 100MHz data rate, making it suitable for high-speed applications.
- Wide operating voltage range: VCCA from 0.95 V to 3.6 V and VCCB from 0.95 V to 5.5 V, providing flexibility in system design.
- Compact packaging: Available in an 8-VSSOP package, which is space-efficient and suitable for modern compact designs.
Applications
The LSF0102DCH is versatile and can be used in a variety of applications, including:
- Interface translation between different voltage domains: Ideal for translating signals between different voltage levels in mixed-signal systems.
- High-speed data communication: Suitable for applications requiring high data rates, such as in communication interfaces and data transfer systems.
- Consumer electronics: Used in various consumer electronic devices where voltage level translation is necessary.
- Industrial and automotive systems: Due to its wide operating temperature range, it is also suitable for industrial and automotive applications.
Q & A
- What is the primary function of the LSF0102DCH?
The primary function of the LSF0102DCH is to perform bidirectional voltage level translation between two different voltage domains. - What is the maximum data rate supported by the LSF0102DCH?
The LSF0102DCH supports up to 100MHz data rate. - What types of output are supported by the LSF0102DCH?
The LSF0102DCH supports both open-drain and push-pull output types. - What is the operating temperature range of the LSF0102DCH?
The operating temperature range of the LSF0102DCH is -40°C to 125°C. - What package types are available for the LSF0102DCH?
The LSF0102DCH is available in 8-VSSOP packages. - Does the LSF0102DCH require additional direction pins?
No, the LSF0102DCH features auto-direction sensing and autosense translation, eliminating the need for additional direction pins. - What are the voltage ranges for VCCA and VCCB?
VCCA ranges from 0.95 V to 3.6 V, and VCCB ranges from 0.95 V to 5.5 V. - Is the LSF0102DCH suitable for high-speed applications?
Yes, the LSF0102DCH is suitable for high-speed applications due to its 100MHz data rate capability. - What are some common applications of the LSF0102DCH?
The LSF0102DCH is commonly used in interface translation, high-speed data communication, consumer electronics, and industrial and automotive systems. - Is the LSF0102DCH RoHS compliant?
Yes, the LSF0102DCH is RoHS compliant and lead-free.
