Overview

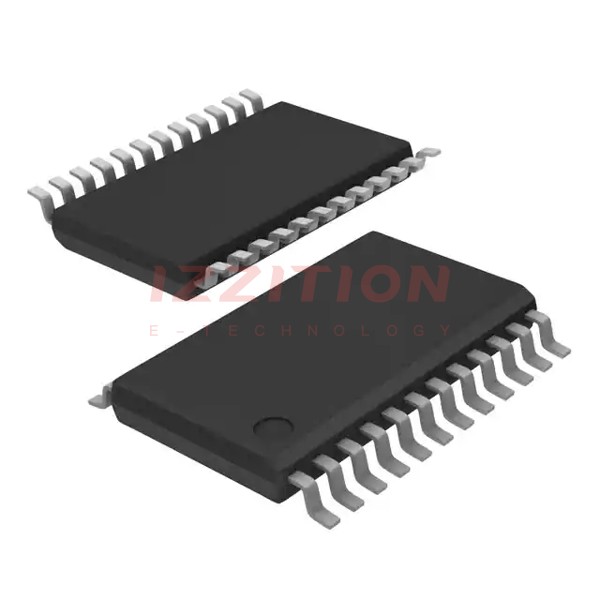

The CBTD3384PW,112 is a dual 5-pole, single-throw bus switch integrated circuit produced by Nexperia USA Inc. Although this product is currently obsolete and no longer manufactured, it was designed to provide flexible switching solutions for various electronic systems. The device features two output enable inputs (nOE) that each control five switch poles, allowing for efficient data routing and isolation in digital circuits.
Key Specifications
| Specification | Value |
|---|---|
| Package Type | 24-TSSOP |
| Number of Poles | 10 (dual 5-pole) |
| Switch Type | Single-throw |
| Output Enable Inputs | 2 (nOE) |
| Status | Obsolete |
Key Features
- Dual 5-pole, single-throw bus switch configuration, allowing for flexible data routing and isolation in digital circuits.
- Two output enable inputs (nOE) to control the switch poles independently.
- 24-TSSOP package, suitable for compact and efficient board design.
- Designed for low power consumption and high switching speed.
Applications
The CBTD3384PW,112 is suitable for various applications requiring data switching and isolation, such as:
- Digital signal processing and routing in telecommunications and networking equipment.
- Data acquisition and control systems in industrial automation.
- Peripheral interface circuits in computer systems.
- General-purpose switching in electronic devices.
Q & A
- What is the CBTD3384PW,112?
The CBTD3384PW,112 is a dual 5-pole, single-throw bus switch integrated circuit.
- Who is the manufacturer of the CBTD3384PW,112?
Nexperia USA Inc.
- What is the package type of the CBTD3384PW,112?
24-TSSOP.
- Is the CBTD3384PW,112 still in production?
No, the CBTD3384PW,112 is obsolete and no longer manufactured.
- What are the key features of the CBTD3384PW,112?
Dual 5-pole, single-throw configuration, two output enable inputs, and a 24-TSSOP package.
- What are typical applications for the CBTD3384PW,112?
Digital signal processing, data acquisition, peripheral interface circuits, and general-purpose switching.
- How many switch poles does the CBTD3384PW,112 have?
10 switch poles, divided into two sets of 5 poles each.
- What is the function of the output enable inputs (nOE) on the CBTD3384PW,112?
The output enable inputs control the switch poles independently.
- Where can I find substitutes for the CBTD3384PW,112?
Substitutes can be found on distributor websites such as Digi-Key, Mouser, or through Nexperia's official documentation.
- What should I consider when replacing the CBTD3384PW,112 with a substitute?
Ensure the substitute has compatible specifications, package type, and functionality to maintain the integrity of the circuit.
