Overview

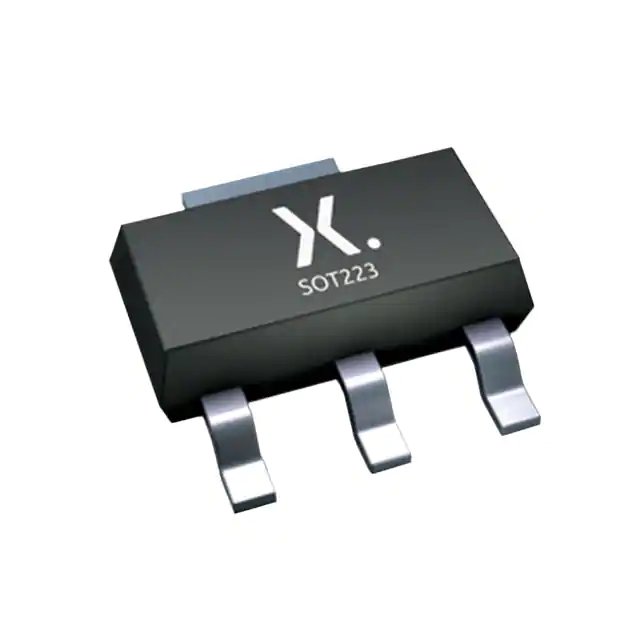

The BZV90-C5V6,115 is a medium-power voltage regulator diode manufactured by Nexperia USA Inc. This component is part of the BZV90 series and is designed to provide stable voltage regulation in various electronic circuits. It is packaged in a SOT223 plastic SMD package, making it suitable for surface-mount applications.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage (V_Z) | 5.6 V |
| Tolerance | ±5% |
| Power Dissipation (P_tot) | 1.5 W |
| Maximum Current (I_ZM) | 200 mA |
| Operating Temperature Range | -65°C to +150°C |
| Package Type | SOT223 |
Key Features
- Medium-power voltage regulation
- Normalized E24 series with ±5% tolerance
- SOT223 plastic SMD package for surface-mount applications
- High power dissipation capability of up to 1.5 W
- Maximum current rating of 200 mA
- Wide operating temperature range from -65°C to +150°C
Applications
The BZV90-C5V6,115 voltage regulator diode is suitable for a variety of applications requiring stable voltage regulation, including:
- Power supplies and voltage regulators
- Audio and video equipment
- Automotive electronics
- Industrial control systems
- Consumer electronics
Q & A
- What is the voltage rating of the BZV90-C5V6,115 diode?
The voltage rating of the BZV90-C5V6,115 diode is 5.6 V. - What is the tolerance of the BZV90-C5V6,115 diode?
The tolerance of the BZV90-C5V6,115 diode is ±5%. - What is the maximum power dissipation of the BZV90-C5V6,115 diode?
The maximum power dissipation of the BZV90-C5V6,115 diode is 1.5 W. - What is the maximum current rating of the BZV90-C5V6,115 diode?
The maximum current rating of the BZV90-C5V6,115 diode is 200 mA. - What is the operating temperature range of the BZV90-C5V6,115 diode?
The operating temperature range of the BZV90-C5V6,115 diode is from -65°C to +150°C. - What package type is the BZV90-C5V6,115 diode available in?
The BZV90-C5V6,115 diode is available in a SOT223 plastic SMD package. - What are some common applications of the BZV90-C5V6,115 diode?
The BZV90-C5V6,115 diode is commonly used in power supplies, audio and video equipment, automotive electronics, industrial control systems, and consumer electronics. - Why is the BZV90-C5V6,115 diode suitable for surface-mount applications?
The BZV90-C5V6,115 diode is suitable for surface-mount applications due to its SOT223 plastic SMD package. - What is the significance of the E24 series in the BZV90-C5V6,115 diode?
The E24 series indicates that the diode is part of a normalized series with a specific tolerance range, in this case, ±5%. - Where can I find detailed specifications for the BZV90-C5V6,115 diode?
Detailed specifications for the BZV90-C5V6,115 diode can be found on the Nexperia website, as well as on distributor websites such as Digi-Key and Mouser.
