BC847CQBZ
  • Share:

Nexperia USA Inc. BC847CQBZ

Manufacturer No:
BC847CQBZ
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
TRANS NPN 45V 0.1A DFN1110D-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

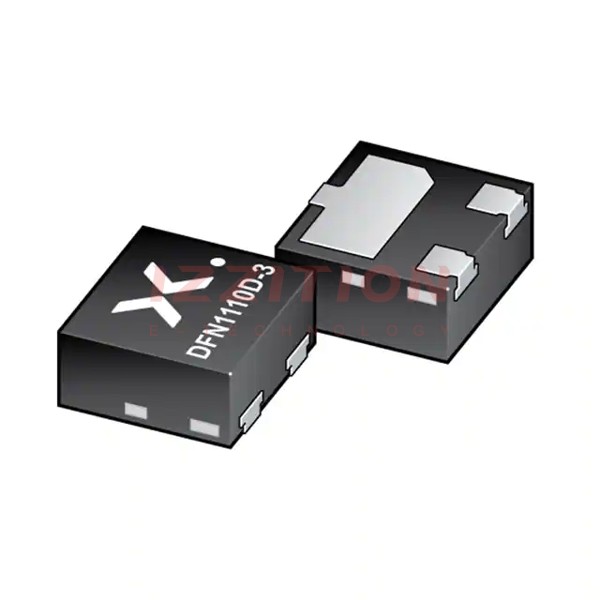

The BC847CQBZ is an NPN general-purpose transistor produced by Nexperia USA Inc. This transistor is part of the BC847 series and is packaged in an ultra small DFN1110D-3 (SOT8015) leadless Surface-Mounted Device (SMD) plastic package with side-wettable flanks. It is designed for high power dissipation and is suitable for various applications requiring compact and reliable transistor performance.

Key Specifications

Parameter Value Unit
Type Number BC847CQB -
Package DFN1110D-3 (SOT8015) -
PNP Complement BC857CQB -
Collector-Base Voltage (VCEO) 45 V
Collector Current (IC) 100 mA
Maximum Junction Temperature (TJ) 150 °C
Package Height 0.5 mm

Key Features

  • High power dissipation capability
  • Suitable for Automatic Optical Inspection (AOI) of solder joints
  • Smaller footprint compared to conventional leaded SMD packages
  • Low package height of 0.5 mm
  • AEC-Q101 qualified, ensuring reliability for automotive applications

Applications

  • General-purpose switching and amplification
  • Space-restricted applications where compact size is crucial
  • Automotive and industrial applications due to AEC-Q101 qualification

Q & A

  1. What is the BC847CQBZ transistor used for?

    The BC847CQBZ is an NPN general-purpose transistor used for switching and amplification in various electronic circuits.

  2. What is the package type of the BC847CQBZ transistor?

    The BC847CQBZ transistor is packaged in an ultra small DFN1110D-3 (SOT8015) leadless Surface-Mounted Device (SMD) plastic package.

  3. What are the key specifications of the BC847CQBZ transistor?

    The key specifications include a collector-base voltage of 45 V, a collector current of 100 mA, and a maximum junction temperature of 150°C.

  4. Is the BC847CQBZ transistor AEC-Q101 qualified?
  5. What are the benefits of the BC847CQBZ transistor's package design?

    The package design offers high power dissipation capability, suitability for AOI of solder joints, a smaller footprint, and a low package height of 0.5 mm.

  6. What are some common applications of the BC847CQBZ transistor?
  7. What is the PNP complement of the BC847CQBZ transistor?

    The PNP complement of the BC847CQBZ transistor is the BC857CQB.

  8. How does the BC847CQBZ transistor contribute to space-restricted applications?
  9. Is the BC847CQBZ transistor suitable for high-temperature environments?
  10. Where can I find more detailed specifications and documentation for the BC847CQBZ transistor?

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):100 mA
Voltage - Collector Emitter Breakdown (Max):45 V
Vce Saturation (Max) @ Ib, Ic:400mV @ 5mA, 100mA
Current - Collector Cutoff (Max):15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:420 @ 2mA, 5V
Power - Max:340 mW
Frequency - Transition:100MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount, Wettable Flank
Package / Case:3-XDFN Exposed Pad
Supplier Device Package:DFN1110D-3
0 Remaining View Similar

In Stock

$0.24
2,728

Please send RFQ , we will respond immediately.

Same Series
CBC46W4S10G0X/AA
CBC46W4S10G0X/AA
CONN D-SUB RCPT 46POS CRIMP
DD15S2S0V50
DD15S2S0V50
CONN D-SUB HD RCPT 15P SLDR CUP
DD15S20LVL0
DD15S20LVL0
CONN D-SUB HD RCPT 15P SLDR CUP
DD15S20LVLX
DD15S20LVLX
CONN D-SUB HD RCPT 15P SLDR CUP
CBC46W4S100E20/AA
CBC46W4S100E20/AA
CONN D-SUB RCPT 46POS CRIMP
CBC9W4S10HES/AA
CBC9W4S10HES/AA
CONN D-SUB RCPT 9POS CRIMP
DD26S2S0V30
DD26S2S0V30
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S2S50T20/AA
DD26S2S50T20/AA
CONN D-SUB HD RCPT 26P SLDR CUP
CBC13W3S10HV3S/AA
CBC13W3S10HV3S/AA
CONN D-SUB RCPT 13POS CRIMP
DD26S2S50V30
DD26S2S50V30
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S20W00
DD26S20W00
CONN D-SUB HD RCPT 26P SLDR CUP
DD44S32S60T2X
DD44S32S60T2X
CONN D-SUB HD RCPT 44P VERT SLDR

Similar Products

Part Number BC847CQBZ BC847CQCZ BC847BQBZ BC847CQAZ
Manufacturer Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc.
Product Status Obsolete Obsolete Active Active
Transistor Type NPN - NPN NPN
Current - Collector (Ic) (Max) 100 mA 100 mA 100 mA 100 mA
Voltage - Collector Emitter Breakdown (Max) 45 V 45 V 45 V 45 V
Vce Saturation (Max) @ Ib, Ic 400mV @ 5mA, 100mA 400mV @ 5mA, 100mA 400mV @ 5mA, 100mA 400mV @ 5mA, 100mA
Current - Collector Cutoff (Max) 15nA (ICBO) 15nA (ICBO) 15nA (ICBO) 15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 420 @ 2mA, 5V 420 @ 2mA, 5V 200 @ 2mA, 5V 420 @ 2mA, 5V
Power - Max 340 mW 360 mW 340 mW 280 mW
Frequency - Transition 100MHz 100MHz 100MHz 100MHz
Operating Temperature 150°C (TJ) 150°C (TJ) 150°C (TJ) 150°C (TJ)
Mounting Type Surface Mount, Wettable Flank Surface Mount, Wettable Flank Surface Mount, Wettable Flank Surface Mount
Package / Case 3-XDFN Exposed Pad 3-XDFN Exposed Pad 3-XDFN Exposed Pad 3-XDFN Exposed Pad
Supplier Device Package DFN1110D-3 DFN1412D-3 DFN1110D-3 DFN1010D-3
