Overview

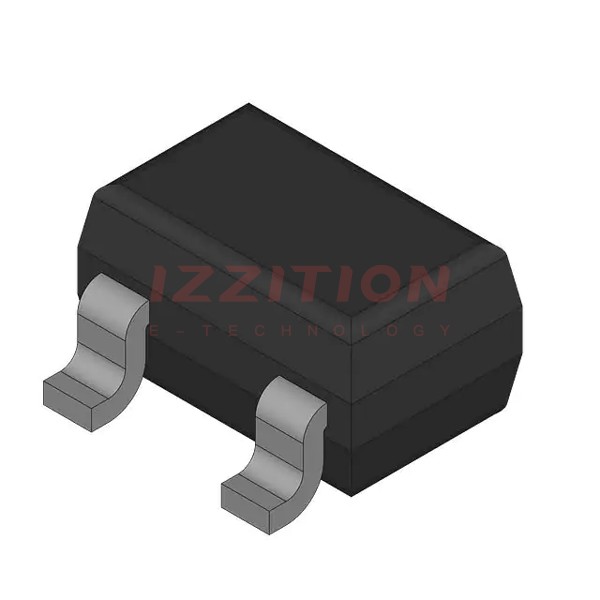

The Nexperia BAV99W,115 is a high-speed switching diode encapsulated in a small surface-mounted device (SMD) plastic package. This diode is part of the BAV99 series, which is renowned for its high switching speed and suitability for various applications, including high-speed switching, reverse polarity protection, and general-purpose switching. The BAV99W,115 is AEC-Q101 qualified, making it suitable for automotive applications. It features a compact SOT-323 (SC-70) package, enhancing its versatility in modern electronic designs.
Key Specifications
| Specification | Value |
|---|---|
| Manufacturer | Nexperia |
| Mounting Type | Surface Mount |
| Package Type | SOT-323 (SC-70) |
| Maximum Continuous Forward Current | 150 mA |
| Peak Reverse Repetitive Voltage | 100 V |
| Diode Configuration | Dual Series |
| Rectifier Type | General Purpose |
| Diode Type | High Speed |
| Pin Count | 3 |
| Maximum Forward Voltage Drop | 1.25 V |
| Number of Elements per Chip | 2 |
| Diode Technology | Silicon Junction |
| Peak Reverse Recovery Time | 4 ns |
| Peak Non-Repetitive Forward Surge Current | 4 A |
| Operating Temperature Range | -65°C to +150°C |
| Diode Capacitance | ≤ 1.5 pF |
Key Features
- High switching speed: trr ≤ 4 ns
- Low leakage current
- Low capacitance: Cd ≤ 1.5 pF
- Reverse voltage: VR ≤ 100 V
- Compact SMD plastic packages (SOT-323)
- AEC-Q101 qualified, suitable for automotive applications
Applications
- High-speed switching
- Reverse polarity protection
- General-purpose switching
- Automotive applications due to AEC-Q101 qualification
Q & A
- What is the maximum continuous forward current of the BAV99W,115?
The maximum continuous forward current is 150 mA.
- What is the peak reverse repetitive voltage of the BAV99W,115?
The peak reverse repetitive voltage is 100 V.
- What is the package type of the BAV99W,115?
The package type is SOT-323 (SC-70).
- What is the peak reverse recovery time of the BAV99W,115?
The peak reverse recovery time is 4 ns.
- Is the BAV99W,115 suitable for automotive applications?
Yes, it is AEC-Q101 qualified, making it suitable for automotive applications.
- What is the maximum forward voltage drop of the BAV99W,115?
The maximum forward voltage drop is 1.25 V.
- What is the diode capacitance of the BAV99W,115?
The diode capacitance is ≤ 1.5 pF.
- What is the operating temperature range of the BAV99W,115?
The operating temperature range is -65°C to +150°C.
- What are the typical applications of the BAV99W,115?
The typical applications include high-speed switching, reverse polarity protection, and general-purpose switching.
- Is the BAV99W,115 RoHS compliant?
Yes, the BAV99W,115 is RoHS compliant.
- What is the peak non-repetitive forward surge current of the BAV99W,115?
The peak non-repetitive forward surge current is 4 A.
