Overview

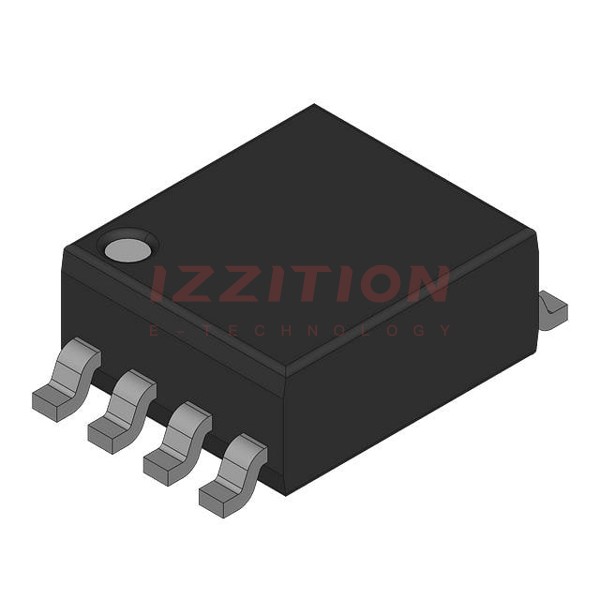

The 74LVC3G06DC is a triple inverter integrated circuit produced by Nexperia USA Inc. This component features open-drain outputs, allowing for versatile use in various logic circuits. It is designed to be compatible with both 3.3 V and 5 V devices, making it a flexible choice for mixed-voltage systems.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Channels | 3 |
| Output Type | Open-Drain |
| Input Voltage Range | 3.3 V or 5 V |
| Package Type | 8-VSSOP |
| Operating Temperature Range | -40°C to 125°C |
Key Features
- Triple inverter with open-drain outputs
- Compatible with both 3.3 V and 5 V input levels
- Low power consumption
- High-speed operation
- Compact 8-VSSOP package
Applications
The 74LVC3G06DC is suitable for a variety of applications, including:
- Mixed-voltage systems where both 3.3 V and 5 V logic levels are used
- Logic circuits requiring open-drain outputs
- High-speed digital circuits
- Low power consumption designs
Q & A
- What is the primary function of the 74LVC3G06DC? The primary function is to act as a triple inverter with open-drain outputs.
- What are the compatible input voltage levels for the 74LVC3G06DC? The component is compatible with both 3.3 V and 5 V input levels.
- What is the package type of the 74LVC3G06DC? The package type is 8-VSSOP.
- What is the operating temperature range of the 74LVC3G06DC? The operating temperature range is -40°C to 125°C.
- Is the 74LVC3G06DC suitable for high-speed applications? Yes, it is designed for high-speed operation.
- What are some common applications for the 74LVC3G06DC? It is commonly used in mixed-voltage systems, logic circuits requiring open-drain outputs, and low power consumption designs.
- How many channels does the 74LVC3G06DC have? It has three channels.
- What is the output type of the 74LVC3G06DC? The output type is open-drain.
- Is the 74LVC3G06DC available in stock? Yes, it is available in stock from various distributors.
- Where can I purchase the 74LVC3G06DC? You can purchase it from distributors like Digi-Key, Heisener, and other authorized Nexperia distributors.
