Overview

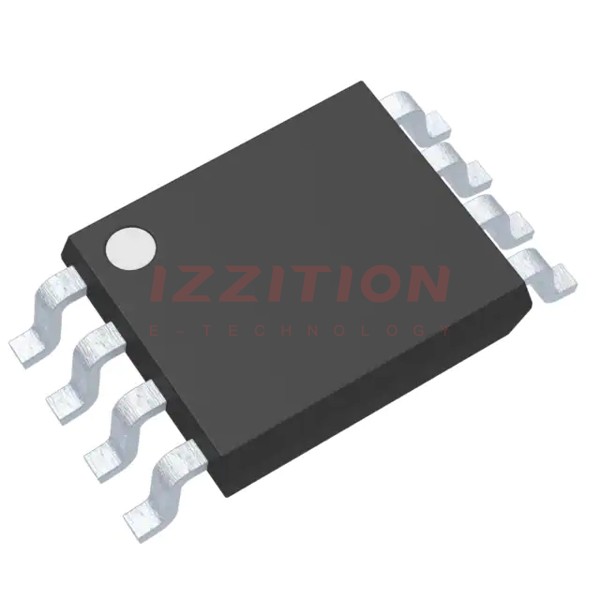

The 74LVC2T45DC-Q100H is a dual-bit, dual-supply translating transceiver produced by Nexperia USA Inc. This component is designed to enable bidirectional level translation between two different voltage domains, making it highly versatile in various electronic systems. It features 3-state outputs, allowing for efficient communication between different voltage levels. The device is part of the 74LVC series, which is known for its high performance and reliability, especially in automotive and industrial applications where robustness is crucial.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage - VCCB | 1.2 V ~ 5.5 V |
| Voltage - VCCA | 1.2 V ~ 5.5 V |
| Translator Type | Voltage Level |
| Package / Case | 8-VSSOP (0.091', 2.30mm Width) |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Number of Circuits | 1 |
| Mounting Type | Surface Mount |
| Data Rate | 420 Mbps |
| Channels per Circuit | 2 |
| Channel Type | Bidirectional |
| Output Type | Tri-State, Non-Inverted |
Key Features
- Bidirectional level translation between two different voltage domains
- 3-state outputs for efficient communication
- High data rate of up to 420 Mbps
- Dual-bit, dual-supply configuration
- Operating temperature range from -40°C to 125°C
- Surface mount package in 8-VSSOP
- Compliant with AEC-Q100 standards for automotive applications
Applications
The 74LVC2T45DC-Q100H is suitable for a variety of applications where bidirectional level translation is necessary. These include:
- Automotive systems: Given its compliance with AEC-Q100 standards, it is ideal for use in automotive electronics.
- Industrial control systems: The device's robustness and wide operating temperature range make it suitable for industrial environments.
- Communication systems: It can be used in systems requiring high-speed data transfer between different voltage domains.
- Embedded systems: Useful in embedded systems where level translation between different voltage levels is required.
Q & A
- What is the primary function of the 74LVC2T45DC-Q100H?
The primary function is to enable bidirectional level translation between two different voltage domains. - What is the operating temperature range of the 74LVC2T45DC-Q100H?
The operating temperature range is from -40°C to 125°C. - What is the maximum data rate supported by the 74LVC2T45DC-Q100H?
The maximum data rate is up to 420 Mbps. - What type of package does the 74LVC2T45DC-Q100H come in?
The device comes in an 8-VSSOP package. - Is the 74LVC2T45DC-Q100H compliant with any automotive standards?
Yes, it is compliant with AEC-Q100 standards. - How many channels does the 74LVC2T45DC-Q100H support?
The device supports 2 channels. - What is the output type of the 74LVC2T45DC-Q100H?
The output type is Tri-State, Non-Inverted. - What are the voltage ranges for VCCB and VCCA?
Both VCCB and VCCA have voltage ranges from 1.2 V to 5.5 V. - Is the 74LVC2T45DC-Q100H suitable for surface mounting?
Yes, it is designed for surface mounting. - What are some common applications for the 74LVC2T45DC-Q100H?
Common applications include automotive systems, industrial control systems, communication systems, and embedded systems.
