Overview

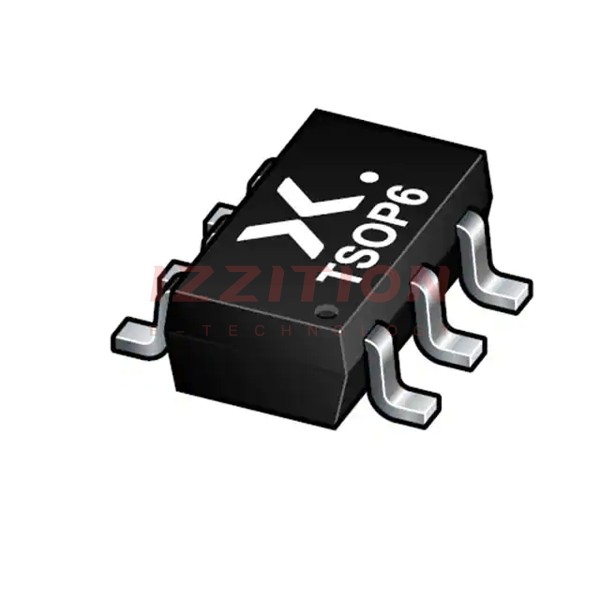

The 74LVC1G175GV-Q100H is a low-power, low-voltage single positive edge triggered D-type flip-flop produced by Nexperia USA Inc. This component is part of the 74LVC family, known for its low power consumption and compatibility with a wide range of voltage levels. The flip-flop features individual data (D) input, clock (CP) input, master reset (MR) input, and Q output. The master reset is an asynchronous active LOW input, operating independently of the clock input. This device is suitable for various applications requiring sequential logic operations.
Key Specifications
| Type number | VCC (V) | Logic switching levels | Output drive capability (mA) | tpd (ns) | fmax (MHz) | Power dissipation considerations | Tamb (°C) | Package name |
|---|---|---|---|---|---|---|---|---|
| 74LVC1G175GV | 1.65 - 5.5 | CMOS/LVTTL | ± 32 | 3.1 | 300 | low | -40~125 | TSOP6 (SOT457) |
Key Features
- Low Power Consumption: The 74LVC1G175GV-Q100H is designed to operate at low power levels, making it energy-efficient.
- Wide Voltage Range: Compatible with supply voltages from 1.65 V to 5.5 V, allowing flexibility in various applications.
- Positive Edge Triggered: The flip-flop is triggered on the LOW-to-HIGH transition of the clock pulse.
- Asynchronous Master Reset: The master reset input operates independently of the clock input, providing an active LOW reset function.
- High Speed Operation: With a maximum clock frequency of 300 MHz and a propagation delay of 3.1 ns, this device supports high-speed logic operations.
Applications
The 74LVC1G175GV-Q100H is versatile and can be used in a variety of applications across different industries, including:
- Automotive Systems: For sequential logic operations in automotive electronics.
- Industrial Control Systems: In control circuits and sequential logic applications.
- Consumer Electronics: In devices requiring low power and high-speed logic operations.
- Computing and Networking: For clocked sequential circuits in computing and networking equipment.
Q & A
- What is the voltage range of the 74LVC1G175GV-Q100H?
The 74LVC1G175GV-Q100H operates with supply voltages from 1.65 V to 5.5 V.
- What is the maximum clock frequency of this device?
The maximum clock frequency is 300 MHz.
- What is the propagation delay of the 74LVC1G175GV-Q100H?
The propagation delay is 3.1 ns.
- How does the master reset function work?
The master reset is an asynchronous active LOW input, operating independently of the clock input.
- What is the output drive capability of this flip-flop?
The output drive capability is ± 32 mA.
- What is the operating temperature range of the 74LVC1G175GV-Q100H?
The operating temperature range is -40°C to 125°C.
- In what package is the 74LVC1G175GV-Q100H available?
The device is available in the TSOP6 (SOT457) package.
- Is the 74LVC1G175GV-Q100H RoHS compliant?
- What are the logic switching levels of this device?
The logic switching levels are CMOS/LVTTL.
- How does the clock input trigger the flip-flop?
The flip-flop is triggered on the LOW-to-HIGH transition of the clock pulse.
