Overview

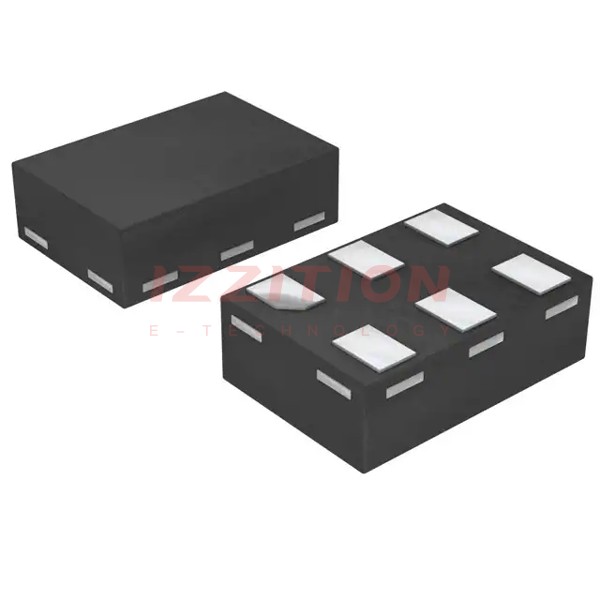

The 74LVC1G14GM-Q100X is a single Schmitt-trigger inverter produced by Nexperia USA Inc. This device is part of the 74LVC family, known for its high performance, low power consumption, and low voltage operation. It is designed to operate in mixed 3.3 V and 5 V environments, making it versatile for various electronic designs. The 74LVC1G14GM-Q100X is fully specified for partial power-down applications using IOFF circuitry, which prevents backflow current when the device is powered down.
Key Specifications
| Type number | VCC (V) | Logic switching levels | Output drive capability (mA) | fmax (MHz) | Number of bits | Power dissipation considerations | Tamb (°C) | Rth(j-a) (K/W) | Rth(j-c) (K/W) | Package name |
|---|---|---|---|---|---|---|---|---|---|---|
| 74LVC1G14GM-Q100 | 1.65 - 5.5 | CMOS/LVTTL | ± 32 | 175 | 1 | Low | -40 to 125 | 320 | 163 | XSON6 (SOT886) |
Key Features
- Wide supply voltage range from 1.65 V to 5.5 V
- Overvoltage tolerant inputs up to 5.5 V
- High noise immunity due to Schmitt-trigger inputs
- CMOS low power dissipation
- IOFF circuitry for partial power-down mode operation
- Output drive capability of ±24 mA at VCC = 3.0 V
- Latch-up performance exceeds 250 mA
- Direct interface with TTL levels
- Unlimited rise and fall times
- Compliance with JEDEC standards JESD8-7 and JESD8-5
Applications
The 74LVC1G14GM-Q100X is suitable for a wide range of applications, including:
- Automotive systems, particularly those requiring AEC-Q100 qualification
- Industrial control systems
- Consumer electronics
- Mobile devices
- Wearable technology
- Power and computing systems
Q & A
- What is the supply voltage range of the 74LVC1G14GM-Q100X?
The supply voltage range is from 1.65 V to 5.5 V.
- What type of inputs does the 74LVC1G14GM-Q100X have?
The device has Schmitt-trigger inputs.
- Can the 74LVC1G14GM-Q100X operate in mixed voltage environments?
Yes, it can be driven from either 3.3 V or 5 V devices.
- What is the output drive capability of the 74LVC1G14GM-Q100X?
The output drive capability is ±32 mA.
- What is the maximum operating frequency of the 74LVC1G14GM-Q100X?
The maximum operating frequency is 175 MHz.
- Does the 74LVC1G14GM-Q100X support partial power-down mode?
Yes, it supports partial power-down mode using IOFF circuitry.
- What is the temperature range for the 74LVC1G14GM-Q100X?
The operating temperature range is from -40°C to 125°C.
- Is the 74LVC1G14GM-Q100X compliant with any industry standards?
Yes, it complies with JEDEC standards JESD8-7 and JESD8-5.
- What package types are available for the 74LVC1G14GM-Q100X?
The device is available in XSON6 (SOT886), TSOP5, TSSOP5, and X2SON4 packages.
- Is the 74LVC1G14GM-Q100X RoHS compliant?
Yes, the device is RoHS compliant.
