Overview

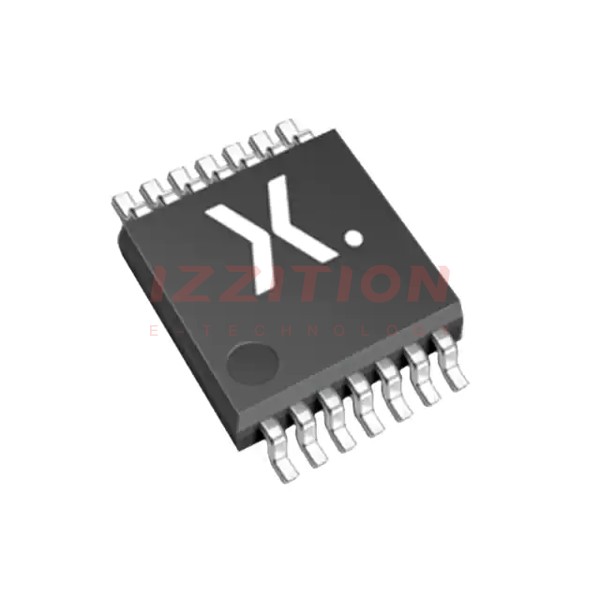

The 74LVC08APW-Q100,11 from Nexperia USA Inc. is a quad 2-input AND gate integrated circuit. This device is designed to operate in a wide range of supply voltages from 1.2 V to 3.6 V, making it versatile for various applications. It is particularly useful in mixed 3.3 V and 5 V environments due to its 5 V tolerant inputs, allowing it to act as a translator between different voltage levels.
This component has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1), ensuring its suitability for automotive applications. It also complies with JEDEC standards and offers low power consumption, making it an efficient choice for modern electronic designs.
Key Specifications
| Type number | VCC (V) | Logic switching levels | Output drive capability (mA) | tpd (ns) | fmax (MHz) | Nr of bits | Power dissipation considerations | Tamb (°C) | Rth(j-a) (K/W) | Ψth(j-top) (K/W) | Rth(j-c) (K/W) | Package name |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 74LVC08APW-Q100 | 1.2 - 3.6 | TTL | ± 24 | 2.1 | 150 | 4 | low | -40 ~ 125 | 144 | 8.4 | 70 | TSSOP14 |
Key Features
- Wide Supply Voltage Range: Operates from 1.2 V to 3.6 V.
- 5 V Tolerant Inputs: Allows interfacing with 5 V logic devices.
- Low Power Consumption: CMOS technology ensures low power usage.
- Direct Interface with TTL Levels: Compatible with TTL logic levels.
- ESD Protection: Human Body Model (HBM) exceeds 2000 V and Charged Device Model (CDM) exceeds 1000 V.
- Schmitt-trigger Action: Tolerant of slower input rise and fall times.
- Automotive Qualified: Meets AEC-Q100 (Grade 1) standards for automotive applications.
- Multiple Package Options: Available in TSSOP14 package with Side-Wettable Flanks for AOI of solder joints.
Applications
The 74LVC08APW-Q100,11 is suitable for a wide range of applications across various industries, including:
- Automotive: Qualified to AEC-Q100 standards, making it ideal for automotive systems.
- Industrial: Used in industrial control systems and automation.
- Consumer Electronics: Found in consumer devices requiring low power and high reliability.
- Mobile and Wearables: Suitable for mobile devices and wearables due to its low power consumption.
- Computing and Power Systems: Used in computing hardware and power management systems.
Q & A
- What is the supply voltage range of the 74LVC08APW-Q100,11?
The supply voltage range is from 1.2 V to 3.6 V.
- Can the 74LVC08APW-Q100,11 be used in mixed 3.3 V and 5 V applications?
- What is the propagation delay of the 74LVC08APW-Q100,11?
The propagation delay is approximately 2.1 ns.
- Does the 74LVC08APW-Q100,11 have ESD protection?
- What is the operating temperature range of the 74LVC08APW-Q100,11?
The operating temperature range is from -40 °C to +125 °C.
- Is the 74LVC08APW-Q100,11 RoHS compliant?
- What package type is the 74LVC08APW-Q100,11 available in?
- Does the 74LVC08APW-Q100,11 support Schmitt-trigger action?
- What are the key industries where the 74LVC08APW-Q100,11 is used?
- How many AND gates does the 74LVC08APW-Q100,11 provide?
