Overview
The 74HC597PW-Q100J is an 8-bit shift register with input flip-flops, manufactured by Nexperia USA Inc. This integrated circuit is part of the 74HC series and is designed for a wide range of applications, including automotive, industrial, and consumer electronics. The device features a parallel-in, serial-out configuration, making it versatile for various data processing and storage needs.
Key Specifications
| Parameter | Value |
|---|---|
| Type Number | 74HC597PW-Q100J |

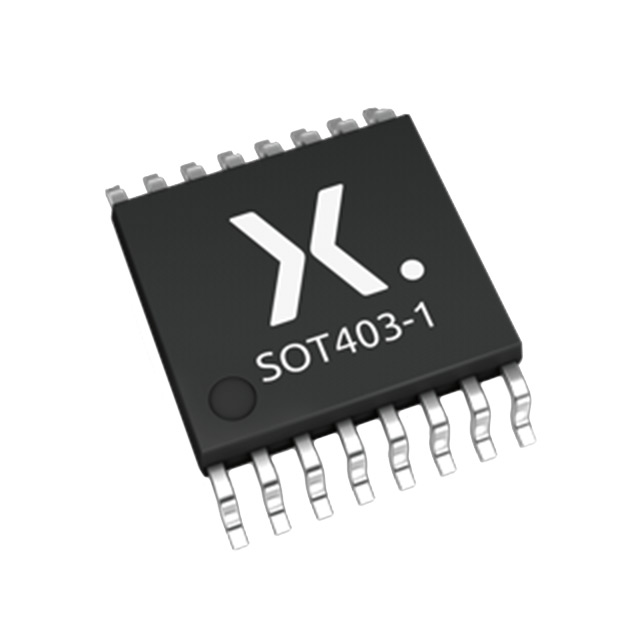

| Package | TSSOP16 (SOT403-1) |
| Supply Voltage (VCC) | 2.0 V to 6.0 V |
| Logic Switching Levels | CMOS |
| Output Drive Capability | ± 5.2 mA |
| Propagation Delay (tpd) | 16 ns |
| Maximum Frequency (fmax) | 108 MHz |
| Number of Bits | 8 |
| Operating Temperature Range | -40 °C to +125 °C |
| ESD Protection | HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V, CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V |
Key Features
- 8-bit parallel storage register inputs and an 8-bit shift register with direct overriding load and clear inputs.
- Positive edge-triggered clocks for both the storage register and the shift register.
- Wide supply voltage range from 2.0 V to 6.0 V.
- CMOS low power dissipation and high noise immunity.
- Inputs include clamp diodes to enable the use of current limiting resistors for interfacing with voltages in excess of VCC.
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B.
- Complies with JEDEC standards JESD8C (2.7 V to 3.6 V) and JESD7A (2.0 V to 6.0 V).
Applications
The 74HC597PW-Q100J is suitable for a variety of applications across different industries, including:
- Automotive systems: Due to its compliance with automotive standards and robust ESD protection.
- Industrial control systems: Where reliable data storage and shifting are critical.
- Consumer electronics: For applications requiring low power consumption and high noise immunity.
- Mobile and wearable devices: Where compact packaging and low power are essential.
Q & A
- What is the primary function of the 74HC597PW-Q100J? The primary function is to act as an 8-bit shift register with input flip-flops, allowing for parallel-in, serial-out data processing.
- What is the supply voltage range for this IC? The supply voltage range is from 2.0 V to 6.0 V.
- What are the logic switching levels for this device? The logic switching levels are CMOS for the 74HC597PW-Q100J.
- What is the maximum frequency this IC can operate at? The maximum frequency is 108 MHz.
- What is the operating temperature range for this IC? The operating temperature range is from -40 °C to +125 °C.
- Does this IC have ESD protection? Yes, it has ESD protection exceeding 2000 V for HBM and 1000 V for CDM.
- What package type is available for this IC? The IC is available in a TSSOP16 (SOT403-1) package.
- Is this IC compliant with any specific standards? Yes, it complies with JEDEC standards JESD8C and JESD7A.
- What are the key features of the shift register in this IC? The shift register has direct overriding load and clear inputs and positive edge-triggered clocks.
- Where can I find more detailed specifications and datasheets for this IC? Detailed specifications and datasheets can be found on the Nexperia website or through authorized distributors like Digi-Key and Mouser.
