Overview
The 74HC138D-Q100,118 is a 3-to-8 line inverting decoder/demultiplexer produced by Nexperia USA Inc. This device decodes three binary weighted address inputs (A0, A1, and A2) to eight mutually exclusive outputs (Y0 to Y7). It features three enable inputs (E1, E2, and E3), allowing for easy parallel expansion and demultiplexing capabilities. The 74HC138D-Q100,118 is part of the 74HC series and is qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1), making it suitable for automotive applications. It operates with a wide supply voltage range from 2V to 6V and is known for its CMOS low power dissipation and high noise immunity.
Key Specifications
| Parameter | Value |
|---|---|
| Type | 3-to-8 line decoder/demultiplexer |

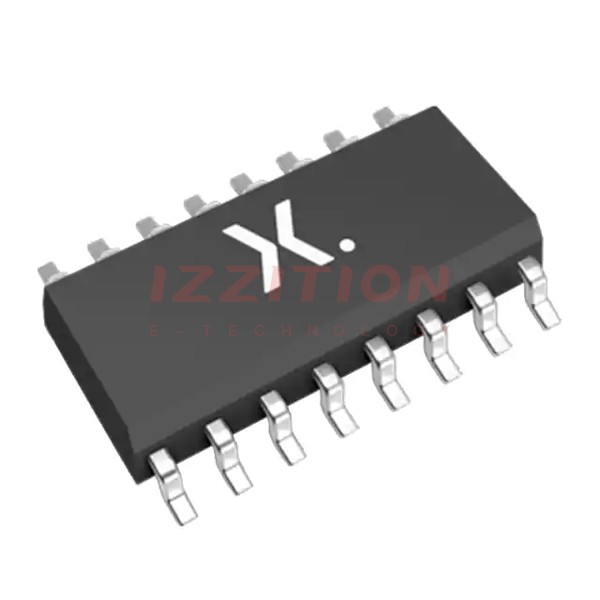

| Package | 16-pin SOIC (SOT109-1) |
| VCC (V) | 2.0 - 6.0 |
| Logic switching levels | CMOS |
| Output drive capability (mA) | ± 5.2 |
| Propagation delay (ns) | 12 (typical at VCC = 2V, Tamb = 25°C) |
| Power dissipation considerations | Low |
| Operating temperature range (°C) | -40 to +125 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ESD protection | HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V, CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V |
Key Features
- Decodes three binary weighted address inputs to eight mutually exclusive outputs (active-low Y0 to active-low Y7).
- Features three enable inputs (E1, E2, and E3) for easy parallel expansion and demultiplexing capabilities.
- Wide supply voltage range from 2V to 6V.
- CMOS low power dissipation and high noise immunity.
- Latch-up performance exceeds 100mA per JESD 78 Class II Level B.
- Ideal for memory chip select decoding with active LOW mutually exclusive outputs.
- Inputs include clamp diodes for interfacing with voltages in excess of VCC.
- Complies with JEDEC standards and has ESD protection.
Applications
- Automotive applications due to AEC-Q100 (Grade 1) qualification.
- Memory chip select decoding.
- Demultiplexing applications using one of the active LOW enable inputs as the data input and the remaining enable inputs as strobes.
- General logic and decoding applications in various industries such as industrial, mobile, and consumer electronics.
Q & A
- What is the primary function of the 74HC138D-Q100,118?
The primary function is to decode three binary weighted address inputs to eight mutually exclusive outputs and to act as a demultiplexer.
- What is the operating voltage range of the 74HC138D-Q100,118?
The operating voltage range is from 2V to 6V.
- What type of logic switching levels does the 74HC138D-Q100,118 use?
The device uses CMOS logic switching levels.
- What is the propagation delay of the 74HC138D-Q100,118?
The propagation delay is typically 12ns at VCC = 2V and Tamb = 25°C.
- What is the operating temperature range of the 74HC138D-Q100,118?
The operating temperature range is from -40°C to +125°C.
- Is the 74HC138D-Q100,118 RoHS compliant?
- What is the moisture sensitivity level (MSL) of the 74HC138D-Q100,118?
The MSL is 1 (Unlimited)).
- How does the 74HC138D-Q100,118 handle ESD protection?
The device has ESD protection exceeding 2000V for HBM and 1000V for CDM).
- What are the typical applications of the 74HC138D-Q100,118?
- Can the 74HC138D-Q100,118 be used as a demultiplexer?
