Overview

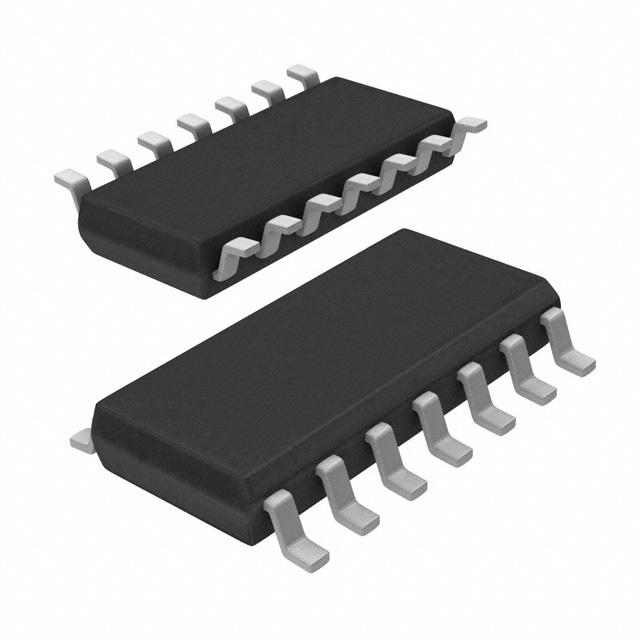

The 74HC125D-Q100J is a quad buffer/line driver with 3-state outputs, manufactured by Nexperia USA Inc. This component is part of the 74HC series and is qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1), making it suitable for use in automotive applications. It features CMOS low power dissipation, high noise immunity, and a wide supply voltage range from 2.0 V to 6.0 V. The device includes output enable inputs (nOE) that control the 3-state outputs, allowing the outputs to assume a high impedance OFF-state when nOE is HIGH. Inputs are protected with clamp diodes, enabling the use of current limiting resistors to interface with voltages exceeding VCC.
Key Specifications
| Type number | VCC (V) | Logic switching levels | Output drive capability (mA) | fmax (MHz) | Number of bits | Power dissipation considerations | Tamb (°C) | Package name |
|---|---|---|---|---|---|---|---|---|
| 74HC125D-Q100 | 2.0 - 6.0 | CMOS | ± 7.8 | 36 | 4 | Low | -40 to +125 | SO14 (SOT108-1) |
Key Features
- Wide Supply Voltage Range: Operates from 2.0 V to 6.0 V.
- CMOS Low Power Dissipation: Low power consumption, making it energy-efficient.
- High Noise Immunity: Robust against noise, ensuring reliable operation.
- 3-State Outputs: Outputs controlled by output enable inputs (nOE), allowing high impedance OFF-state.
- Input Protection: Inputs include clamp diodes for voltage protection.
- Latch-up Performance: Exceeds 100 mA per JESD 78 Class II Level B.
- Automotive Qualified: Compliant with AEC-Q100 (Grade 1) for automotive applications.
- Temperature Range: Specified from -40 °C to +85 °C and from -40 °C to +125 °C.
Applications
The 74HC125D-Q100J is suitable for a variety of applications, including:
- Automotive Systems: Qualified to AEC-Q100 standards, making it ideal for automotive electronics.
- Industrial Control Systems: Used in industrial automation and control systems due to its robustness and reliability.
- Consumer Electronics: Found in various consumer electronic devices requiring low power and high noise immunity.
- Communication Systems: Used in communication equipment for buffering and line driving functions.
Q & A
- What is the supply voltage range of the 74HC125D-Q100J?
The supply voltage range is from 2.0 V to 6.0 V.
- What are the logic switching levels for the 74HC125D-Q100J?
The logic switching levels are CMOS levels.
- What is the maximum output drive capability of the 74HC125D-Q100J?
The maximum output drive capability is ± 7.8 mA.
- What is the maximum operating frequency of the 74HC125D-Q100J?
The maximum operating frequency is 36 MHz.
- What is the package type of the 74HC125D-Q100J?
The package type is SO14 (SOT108-1).
- Is the 74HC125D-Q100J automotive qualified?
Yes, it is qualified to AEC-Q100 (Grade 1) standards.
- What is the temperature range for the 74HC125D-Q100J?
The temperature range is from -40 °C to +125 °C.
- Does the 74HC125D-Q100J have input protection?
Yes, inputs include clamp diodes for voltage protection.
- What is the latch-up performance of the 74HC125D-Q100J?
The latch-up performance exceeds 100 mA per JESD 78 Class II Level B.
- Is the 74HC125D-Q100J RoHS compliant?
Yes, it is RoHS compliant.
