Overview

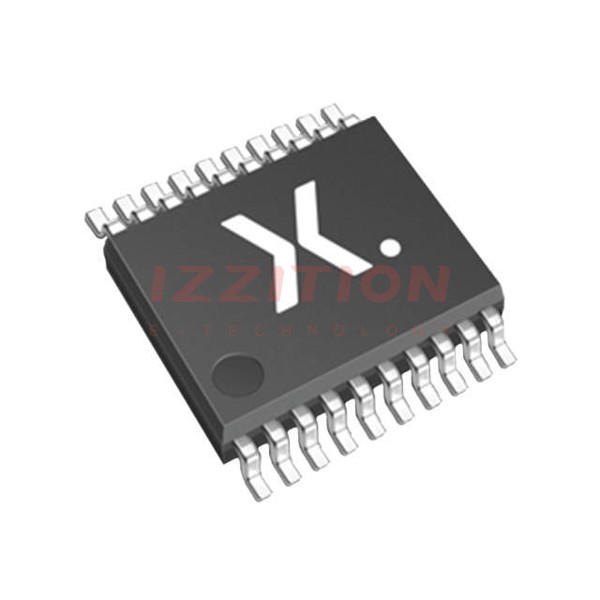

The 74AHC273PW-Q100J is an octal D-type flip-flop integrated circuit produced by Nexperia USA Inc. This device is part of the 74AHC series, known for its high-speed CMOS logic. It features eight positive-edge triggered D-type flip-flops, making it suitable for a wide range of applications requiring data storage and sequential logic operations.
Key Specifications
| Parameter | Value |
|---|---|
| Type | Octal D-type flip-flop |
| Trigger Type | Positive-edge triggered |
| Supply Voltage (VCC) | 2.0 V to 6.0 V |
| Package | 20-TSSOP (0.173", 4.40mm Width) |
| Operating Temperature | -40 °C to +125 °C |
| Logic Switching Levels | CMOS level |
| Output Drive Capability | ± 5.2 mA |
| Propagation Delay (tpd) | 15 ns |
| Maximum Clock Frequency (fmax) | 122 MHz |
| ESD Protection | HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V, CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V |
Key Features
- Eight positive-edge triggered D-type flip-flops with common clock (CP) and master reset (MR) inputs.
- Wide supply voltage range from 2.0 V to 6.0 V.
- CMOS low power dissipation.
- High noise immunity.
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B.
- Inputs include clamp diodes, enabling the use of current limiting resistors to interface inputs to voltages in excess of VCC.
- Automotive product qualification in accordance with AEC-Q100 (Grade 1).
Applications
The 74AHC273PW-Q100J is suitable for various applications across different industries, including:
- Automotive: Qualified to AEC-Q100 (Grade 1), making it suitable for automotive systems.
- Industrial: Used in industrial control systems and data processing units.
- Consumer Electronics: Found in mobile, computing, and consumer electronic devices.
- Power and Computing: Used in power management and computing systems where high-speed logic operations are required.
Q & A
- What is the 74AHC273PW-Q100J?
The 74AHC273PW-Q100J is an octal D-type flip-flop integrated circuit produced by Nexperia USA Inc. - What is the trigger type of the 74AHC273PW-Q100J?
The device is positive-edge triggered. - What is the supply voltage range for the 74AHC273PW-Q100J?
The supply voltage range is from 2.0 V to 6.0 V. - What package type is the 74AHC273PW-Q100J available in?
The device is available in a 20-TSSOP package. - What are the operating temperature ranges for the 74AHC273PW-Q100J?
The operating temperature ranges are from -40 °C to +125 °C. - Does the 74AHC273PW-Q100J have ESD protection?
Yes, it has ESD protection: HBM exceeds 2000 V and CDM exceeds 1000 V. - What are the logic switching levels for the 74AHC273PW-Q100J?
The logic switching levels are CMOS level. - What is the maximum clock frequency for the 74AHC273PW-Q100J?
The maximum clock frequency is 122 MHz. - Is the 74AHC273PW-Q100J qualified for automotive applications?
Yes, it is qualified to AEC-Q100 (Grade 1) for automotive applications. - What are some common applications of the 74AHC273PW-Q100J?
Common applications include automotive, industrial, consumer electronics, power, and computing systems.
