Overview

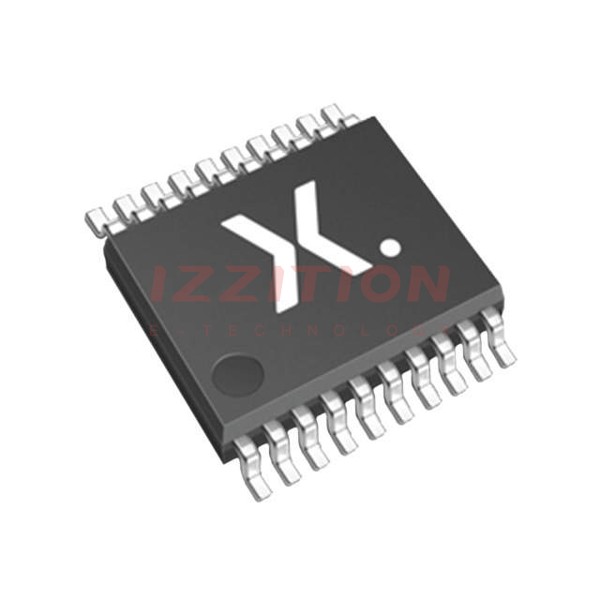

The 74LVC273PW-Q100J, produced by Nexperia USA Inc., is an octal positive-edge triggered D-type flip-flop. This device is designed with clock (CP) and master reset (MR) inputs, making it versatile for various digital circuit applications. The outputs Qn assume the state of their corresponding D inputs during the LOW-to-HIGH clock transition, meeting the set-up and hold time requirements. A LOW on the MR input forces the outputs LOW, independent of the clock and data inputs. This feature is particularly useful in mixed 3.3 V and 5 V environments, allowing the device to act as a translator between different voltage levels.
Key Specifications
| Type number | VCC (V) | Logic switching levels | Output drive capability (mA) | tpd (ns) | fmax (MHz) | Power dissipation considerations | Tamb (°C) | Rth(j-a) (K/W) | Ψth(j-top) (K/W) | Rth(j-c) (K/W) | Package name |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 74LVC273PW-Q100J | 1.2 - 3.6 | CMOS/LVTTL | ± 24 | 6.0 | 230 | low | -40 ~ 125 | 101 | 4.7 | 45 | TSSOP20 |
Key Features
- Automotive Product Qualification: Qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1), making it suitable for automotive applications.
- Wide Supply Voltage Range: Operates from 1.2 V to 3.6 V, allowing flexibility in different voltage environments.
- Overvoltage Tolerant Inputs: Inputs can tolerate up to 5.5 V, enhancing robustness in mixed voltage systems.
- CMOS Low Power Consumption: Low power consumption, which is beneficial for energy-efficient designs.
- Direct Interface with TTL Levels: Compatible with TTL logic levels, facilitating integration with various digital circuits.
- Schmitt-Trigger Action: Tolerant of slower input rise and fall times due to Schmitt-trigger action at all inputs.
- High Output Drive Capability: Capable of driving 50 Ω transmission lines at +85 °C.
- ESD Protection: Exceeds 2000 V HBM and 1000 V CDM, providing robust ESD protection.
Applications
The 74LVC273PW-Q100J is suitable for a wide range of applications, including:
- Automotive Systems: Qualified to AEC-Q100 standards, making it ideal for automotive electronics.
- Industrial Control Systems: Used in industrial automation and control systems due to its robustness and reliability.
- Consumer Electronics: Found in various consumer electronic devices requiring reliable digital logic functions.
- Computing and Networking: Used in computing and networking equipment for its high-speed and low-power characteristics.
Q & A
- What is the primary function of the 74LVC273PW-Q100J?
The primary function is to act as an octal positive-edge triggered D-type flip-flop with clock and master reset inputs.
- What is the supply voltage range for this device?
The device operates from 1.2 V to 3.6 V.
- What is the maximum clock frequency for the 74LVC273PW-Q100J?
The maximum clock frequency is 230 MHz.
- Is the 74LVC273PW-Q100J suitable for automotive applications?
Yes, it is qualified to the AEC-Q100 standard (Grade 1) for automotive use.
- What is the output drive capability of the device?
The output drive capability is ±24 mA.
- What type of ESD protection does the device have?
The device exceeds 2000 V HBM and 1000 V CDM for ESD protection.
- What is the operating temperature range for the 74LVC273PW-Q100J?
The device operates from -40 °C to +125 °C.
- What package type is the 74LVC273PW-Q100J available in?
The device is available in a TSSOP20 package.
- Does the device support mixed voltage environments?
Yes, it can be driven from either 3.3 V or 5 V devices, making it suitable for mixed voltage environments.
- What is the propagation delay of the device?
The propagation delay is approximately 6.0 ns.
