Overview

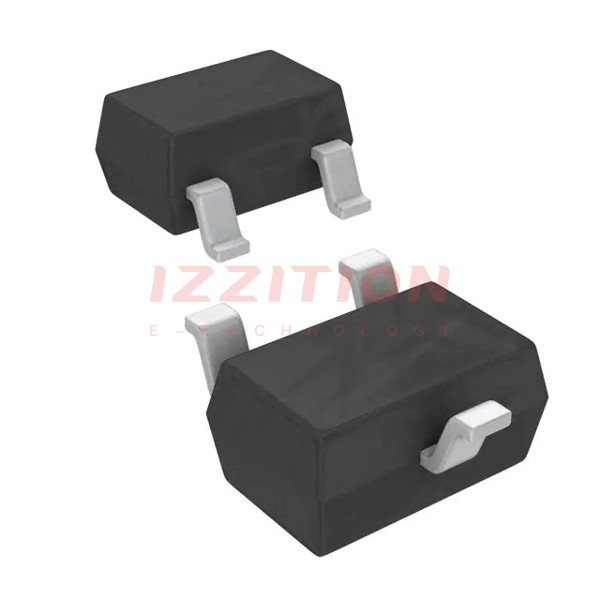

The BAV99WTHE3-TP, produced by Micro Commercial Components, is a dual surface-mount switching diode designed for general-purpose switching applications. This component is part of the BAV99 series and is known for its fast switching speed and suitability for automated insertion in surface-mount packages.
The BAV99WTHE3-TP is a lead-free and RoHS-compliant device, making it environmentally friendly and compliant with current regulatory standards. It is also halogen and antimony free, further enhancing its 'green' credentials.
Key Specifications
| Characteristic | Symbol | Value | Unit |
|---|---|---|---|
| Configuration | - | Dual | - |
| Reverse Voltage-Max [Vrrm] | VRRM | 75 | V |
| Forward Voltage | VF | 0.715 - 1.25 | V |
| Reverse Current-Max | IR | 2.5µA | - |
| Reverse Recovery Time-Max | trr | 4ns | - |
| Power Dissipation | PD | 350mW | - |
| Diode Capacitance-Max | CT | 2pF | - |
| Average Forward Current-Max | IF | 215mA | - |
| Peak Current-Max | IFSM | 2A | - |
| Operating Temp Range | TJ | -55°C to +150°C | - |
| Package Style | - | SOT-23 (SC-59, TO-236) | - |
| Mounting Method | - | Surface Mount | - |
Key Features
- Fast Switching Speed: The BAV99WTHE3-TP is designed for fast switching applications, making it suitable for high-frequency operations.
- Surface-Mount Package: Ideally suited for automated insertion, this component is easy to integrate into modern manufacturing processes.
- General-Purpose Switching: This diode is versatile and can be used in a wide range of switching applications.
- Lead-Free and RoHS Compliant: The device is free from lead, halogen, and antimony, making it an environmentally friendly choice.
- High Temperature Range: Operates within a temperature range of -55°C to +150°C, ensuring reliability in various environmental conditions.
- Low Current Leakage: Features low reverse current, which helps in reducing power consumption and enhancing overall system efficiency.
- Moisture Sensitivity Level 1: Compliant with J-STD-020, indicating minimal risk from moisture exposure during handling and assembly.
Applications
- General-Purpose Switching: Suitable for various switching applications in electronic circuits.
- Automotive Systems: The BAV99Q variant is AEC-Q101 qualified, making it suitable for automotive applications requiring specific change control and reliability.
- Consumer Electronics: Used in a wide range of consumer electronic devices due to its fast switching speed and low power consumption.
- Industrial Control Systems: Can be integrated into industrial control systems where fast and reliable switching is critical.
Q & A
- What is the maximum reverse voltage of the BAV99WTHE3-TP?
The maximum reverse voltage (VRRM) is 75V.
- What is the forward voltage range of the BAV99WTHE3-TP?
The forward voltage (VF) ranges from 0.715V to 1.25V depending on the forward current.
- What is the reverse recovery time of the BAV99WTHE3-TP?
The reverse recovery time (trr) is 4ns.
- What is the power dissipation of the BAV99WTHE3-TP?
The power dissipation (PD) is 350mW.
- Is the BAV99WTHE3-TP RoHS compliant?
Yes, the BAV99WTHE3-TP is RoHS compliant and lead-free.
- What is the operating temperature range of the BAV99WTHE3-TP?
The operating temperature range is -55°C to +150°C.
- What package style does the BAV99WTHE3-TP use?
The package style is SOT-23 (SC-59, TO-236).
- Is the BAV99WTHE3-TP suitable for automotive applications?
The BAV99Q variant is AEC-Q101 qualified and suitable for automotive applications.
- What is the moisture sensitivity level of the BAV99WTHE3-TP?
The moisture sensitivity level is 1 per J-STD-020.
- What is the peak forward surge current of the BAV99WTHE3-TP?
The peak forward surge current (IFSM) is 2A for a duration of 1µs.
