Overview
The PIC18F25K22-I/SO is a microcontroller from Microchip Technology, part of the PIC18F family. This device is known for its high-performance and versatility, making it suitable for a wide range of embedded system applications. It features a robust set of peripherals and a comprehensive instruction set, enabling developers to create complex and efficient systems.
Key Specifications
| Specification | Value |
|---|---|
| Part Number | PIC18F25K22-I/SO |

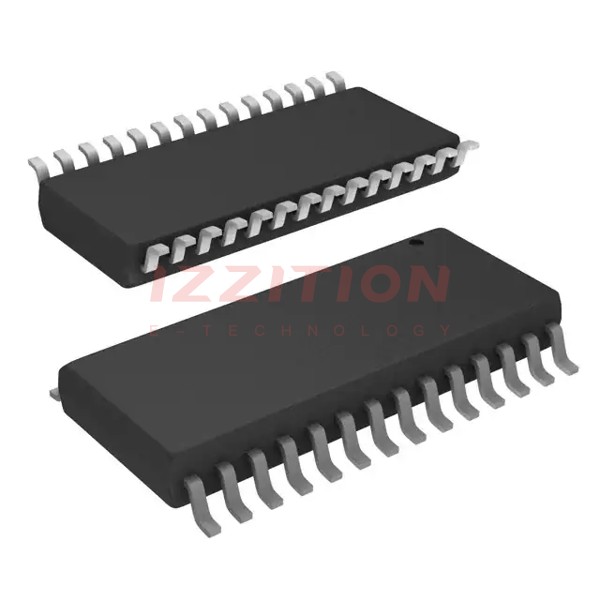

| Package Type | 28-pin SOIC |
| Flash Memory | 32 KB |
| RAM | 1536 bytes |
| Number of I/O Pins | 25 |
| Operating Voltage | 2.0V to 5.5V |
| Operating Temperature | -40°C to +125°C |
| Country of Origin | Thailand |
Key Features
- High-performance 8-bit RISC CPU with a comprehensive instruction set.
- 32 KB of Flash memory and 1536 bytes of RAM.
- 25 I/O pins for versatile connectivity.
- Integrated peripherals including timers, capture/compare/PWM modules, and serial communication modules (SPI, I2C, UART).
- Low power consumption with various sleep modes.
- Programmable Brown-out Reset (BOR) and Power-on Reset (POR).
Applications
The PIC18F25K22-I/SO is suitable for a variety of applications, including:
- Industrial control systems.
- Automotive systems.
- Consumer electronics.
- Medical devices.
- IoT and wireless sensor networks.
Q & A
- What is the part number of this microcontroller?
The part number is PIC18F25K22-I/SO. - What is the package type of the PIC18F25K22-I/SO?
The package type is 28-pin SOIC. - How much Flash memory does the PIC18F25K22-I/SO have?
The PIC18F25K22-I/SO has 32 KB of Flash memory. - What is the RAM capacity of the PIC18F25K22-I/SO?
The RAM capacity is 1536 bytes. - How many I/O pins does the PIC18F25K22-I/SO have?
The device has 25 I/O pins. - What is the operating voltage range of the PIC18F25K22-I/SO?
The operating voltage range is 2.0V to 5.5V. - What are some of the integrated peripherals of the PIC18F25K22-I/SO?
The device includes timers, capture/compare/PWM modules, and serial communication modules (SPI, I2C, UART). - Is the PIC18F25K22-I/SO suitable for low power applications?
Yes, it has low power consumption with various sleep modes. - What are some common applications of the PIC18F25K22-I/SO?
Common applications include industrial control systems, automotive systems, consumer electronics, medical devices, and IoT and wireless sensor networks. - Where can I find detailed specifications and datasheets for the PIC18F25K22-I/SO?
Detailed specifications and datasheets can be found on Microchip Technology's official website, as well as on distributor websites like Digi-Key, Mouser, and Master Electronics.
