Overview

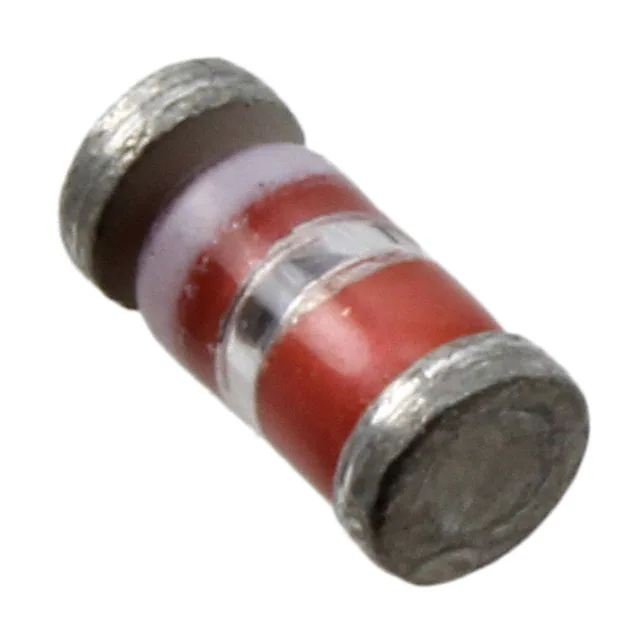

The BZV55C7V5/TR is a surface mount silicon Zener diode produced by Microchip Technology, formerly part of Micrel. This component is designed for use in various commercial, industrial, entertainment, computer, and automotive applications. It is part of the BZV55C series, which offers a range of Zener voltages from 2.4V to 75V with a ±5% tolerance.
Key Specifications
| Parameter | Value | Units |
|---|---|---|
| Zener Voltage (VZ) | 7.5 | V |
| Test Current (IZT) | 5.0 | mA |
| Maximum Zener Impedance (ZZT) | 80 | Ω |
| Maximum Reverse Current (IR) | 1.0 | μA |
| Average Forward Current (IO) | 250 | mA |
| Peak Repetitive Forward Current (IFRM) | 250 | mA |
| Power Dissipation (PD) | 500 | mW |
| Operating and Storage Junction Temperature (TJ, Tstg) | -65 to +200 | °C |
Key Features
- High Quality and Reliability: Designed for use in all types of commercial, industrial, entertainment, computer, and automotive applications.
- Surface Mount Package: SOD-80 case, making it suitable for surface mount assembly.
- Low Power Dissipation: Maximum power dissipation of 500 mW.
- Wide Operating Temperature Range: Operating and storage junction temperature range from -65°C to +200°C.
- High Zener Voltage Stability: Zener voltage stability with a ±5% tolerance.
Applications
- Commercial Applications: Used in various commercial electronics for voltage regulation and protection.
- Industrial Applications: Suitable for industrial control systems, power supplies, and other industrial electronics.
- Entertainment and Computer Applications: Used in audio equipment, computer peripherals, and other consumer electronics.
- Automotive Applications: Employed in automotive systems for voltage regulation and protection.
Q & A
- What is the BZV55C7V5/TR used for?
The BZV55C7V5/TR is used for voltage regulation and protection in various electronic applications.
- What is the Zener voltage of the BZV55C7V5/TR?
The Zener voltage of the BZV55C7V5/TR is 7.5V with a ±5% tolerance.
- What is the maximum power dissipation of the BZV55C7V5/TR?
The maximum power dissipation is 500 mW.
- What is the operating temperature range of the BZV55C7V5/TR?
The operating and storage junction temperature range is from -65°C to +200°C.
- What type of package does the BZV55C7V5/TR come in?
The BZV55C7V5/TR comes in a SOD-80 surface mount package.
- What are the typical applications of the BZV55C7V5/TR?
Typical applications include commercial, industrial, entertainment, computer, and automotive electronics.
- What is the average forward current rating of the BZV55C7V5/TR?
The average forward current rating is 250 mA.
- What is the peak repetitive forward current rating of the BZV55C7V5/TR?
The peak repetitive forward current rating is also 250 mA.
- How do I ensure the correct ordering of the BZV55C7V5/TR?
Ensure to specify the correct part number and any additional requirements such as plating when ordering.
- Where can I find detailed specifications for the BZV55C7V5/TR?
Detailed specifications can be found in the datasheet available from Microchip Technology's official website or authorized distributors.
