Overview

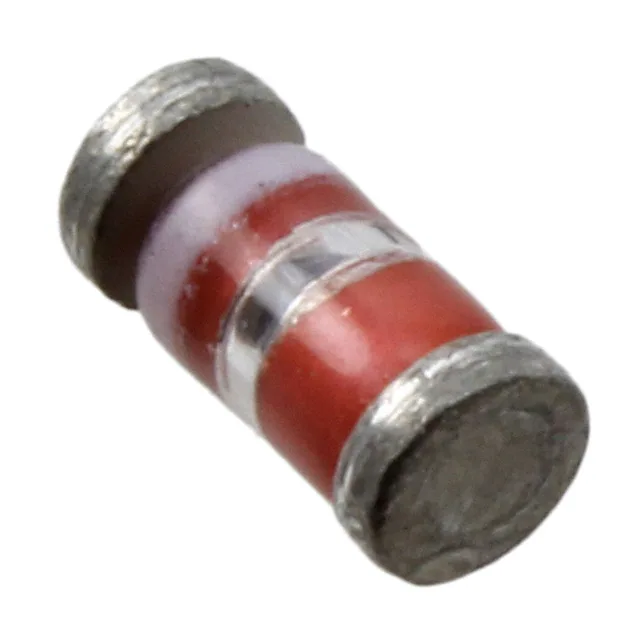

The BZV55C75/TR is a Zener diode produced by Microchip Technology, designed to provide voltage regulation and stabilization in various electronic circuits. This component is part of Microchip's extensive portfolio of discrete power management solutions, known for their reliability and performance in a wide range of applications.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Part Number | BZV55C75/TR | - |
| Manufacturer | Microchip Technology | - |
| Zener Voltage (VZ) | 75 V ±6% | V |
| Test Current (IZT) | 2.5 - 5.0 mA | mA |
| Power Dissipation (PD) | 500 mW | mW |
| Forward Voltage (VF) at IF = 100mA | 1 V | V |
| Junction Temperature Range (TJ) | -55 to +175 °C | °C |
| Storage Temperature Range (TSTG) | -55 to +175 °C | °C |
| Package | DO-213AA (Surface Mount) | - |
| RoHS Status | Compliant | - |
Key Features
- Voltage Regulation: The BZV55C75/TR provides stable voltage regulation with a Zener voltage of 75 V ±6%.
- Power Dissipation: It has a power dissipation of 500 mW, making it suitable for various power management applications.
- Operating Temperature Range: The component operates within a temperature range of -55 to +175 °C, ensuring reliability in diverse environments.
- RoHS Compliance: The diode is RoHS compliant, meeting environmental standards for electronic components.
- Surface Mount Package: The DO-213AA surface mount package facilitates easy integration into modern PCB designs.
Applications
- Voltage Stabilizers: Used in low voltage stabilizers or voltage references to maintain stable voltage levels.
- Adapters and Converters: Suitable for use in adapters and on-board DC/DC converters.
- Lighting Applications: Can be used in various lighting applications due to its stable voltage regulation capabilities.
- Industrial and Automotive Systems: Applicable in industrial and automotive systems where reliable voltage regulation is crucial.
Q & A
- What is the Zener voltage of the BZV55C75/TR?
The Zener voltage of the BZV55C75/TR is 75 V ±6%. - What is the power dissipation of the BZV55C75/TR?
The power dissipation is 500 mW. - What is the operating temperature range of the BZV55C75/TR?
The operating temperature range is -55 to +175 °C. - Is the BZV55C75/TR RoHS compliant?
Yes, the BZV55C75/TR is RoHS compliant. - What type of package does the BZV55C75/TR use?
The BZV55C75/TR uses a DO-213AA surface mount package. - What are some common applications of the BZV55C75/TR?
Common applications include voltage stabilizers, adapters, on-board DC/DC converters, and lighting applications. - What is the forward voltage of the BZV55C75/TR at IF = 100mA?
The forward voltage at IF = 100mA is 1 V. - Can the BZV55C75/TR be used in industrial and automotive systems?
Yes, it can be used in industrial and automotive systems due to its reliable voltage regulation capabilities. - How do I ensure proper installation of the BZV55C75/TR?
Ensure proper installation by following the manufacturer's guidelines for surface mount components, including correct soldering techniques and PCB design considerations. - Where can I find detailed specifications and datasheets for the BZV55C75/TR?
Detailed specifications and datasheets can be found on Microchip Technology's official website or through authorized distributors like Digi-Key and Mouser.
