Overview
The MAX1436ECQ+TD is an octal, 12-bit analog-to-digital converter (ADC) produced by Analog Devices Inc./Maxim Integrated. This ADC is designed for high-performance applications, featuring a pipelined architecture and digital error correction. It operates from a single 1.8V supply and is optimized for low power consumption and high dynamic performance, making it suitable for medical imaging instrumentation and digital communications.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12-bit |
| Sample Rate | 40 Msps |
| Supply Voltage | 1.8V |
| Power Consumption | 743 mW (93 mW per channel) |
| Signal-to-Noise Ratio (SNR) | 69.9 dB (typ) at 5.3 MHz input frequency |
| Analog Input Voltage Range | 1.4 Vpp (differential) |
| Reference Voltage | 1.24 V (internal precision bandgap reference) |

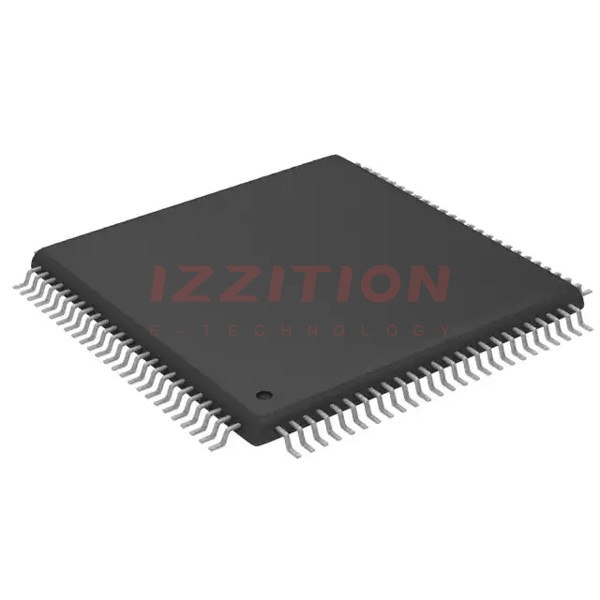

| Package Type | 100-Pin TQFP-EP (14mm x 14mm x 1mm) |
| Operating Temperature Range | -40°C to +85°C |
Key Features
- Fully differential analog inputs
- Pipelined architecture with digital error correction
- Low power consumption with power-down mode
- Internal 1.24V precision bandgap reference with flexible reference structure
- Single-ended clock with internal duty-cycle equalizer
- LVDS outputs supporting up to 30 inches FR-4 backplane connections
- Test mode for digital signal integrity
- Compact 100-Pin TQFP package with exposed pad
Applications
The MAX1436ECQ+TD is particularly suited for high-performance applications such as medical imaging instrumentation and digital communications. Its low power consumption and high dynamic performance make it an ideal choice for systems requiring precise and efficient analog-to-digital conversion.
Q & A
- What is the resolution of the MAX1436ECQ+TD ADC?
The MAX1436ECQ+TD has a 12-bit resolution. - What is the sample rate of the MAX1436ECQ+TD?
The sample rate is 40 Msps. - What is the supply voltage for the MAX1436ECQ+TD?
The supply voltage is 1.8V. - How much power does the MAX1436ECQ+TD consume?
The power consumption is 743 mW (93 mW per channel). - What is the signal-to-noise ratio (SNR) of the MAX1436ECQ+TD?
The SNR is 69.9 dB (typ) at a 5.3 MHz input frequency. - What is the analog input voltage range of the MAX1436ECQ+TD?
The analog input voltage range is 1.4 Vpp (differential). - Does the MAX1436ECQ+TD have an internal reference voltage?
Yes, it has an internal 1.24V precision bandgap reference. - What type of package does the MAX1436ECQ+TD come in?
The package type is 100-Pin TQFP-EP (14mm x 14mm x 1mm). - What is the operating temperature range of the MAX1436ECQ+TD?
The operating temperature range is -40°C to +85°C. - Is there an evaluation kit available for the MAX1436ECQ+TD?
Yes, an evaluation kit (MAX1436EVKIT) is available.
