Overview
The MAX1436BECQ+TD, produced by Analog Devices Inc./Maxim Integrated, is an octal, 12-bit analog-to-digital converter (ADC) designed for high-performance and low-power applications. This ADC features a pipelined architecture and digital error correction, incorporating a fully differential signal path. It is optimized for use in medical imaging instrumentation and digital communications, offering excellent dynamic performance and low power consumption.
Key Specifications
| Parameter | Value | Conditions |
|---|---|---|
| Resolution | 12 bits | |
| Sampling Rate | 40 Msps | |
| Supply Voltage | 1.7V to 1.9V (Analog and Digital) | |
| Power Consumption | 743mW (93mW per channel) | Normal operation |
| Signal-to-Noise Ratio (SNR) | 69.9dB (typ) at 5.3MHz input frequency | |
| Spurious-Free Dynamic Range (SFDR) | 96dBc at 5.3MHz input frequency | |
| Input Type | Fully differential | |
| Reference Type | Internal (1.24V precision bandgap) or External | |
| Operating Temperature | -40°C to 85°C | |

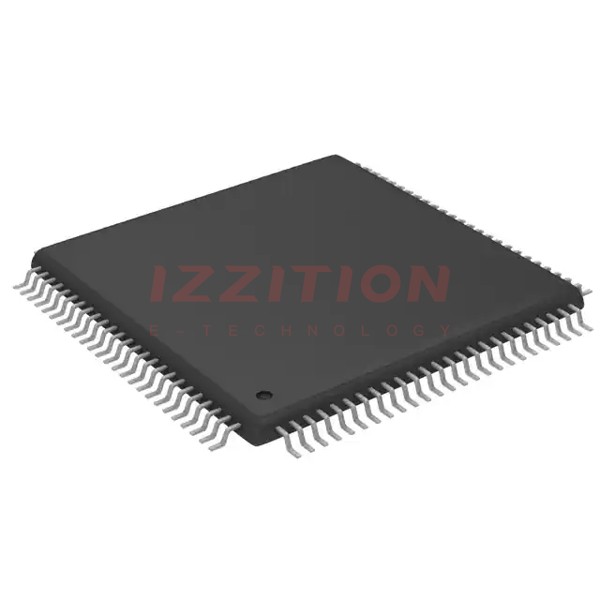

| Package | 100-TQFP (14x14) with exposed pad |
Key Features
- Excellent dynamic performance with 69.9dB SNR and 96dBc SFDR at 5.3MHz input frequency
- Ultra-low power consumption: 93mW per channel in normal operation
- Fast 200µs wake-up time from standby mode
- Serial LVDS outputs with support for up to 30 inches FR-4 backplane connections
- Pin-selectable LVDS/SLVS (Scalable Low-Voltage Signaling) mode
- On-chip 1.24V precision bandgap reference with flexible reference structure for external reference use
- Clock duty-cycle equalizer and optional on-board clock-shaping circuitry
- Fully differential analog inputs with a wide differential input voltage range (1.4V P-P)
- Compact 100-TQFP package with exposed pad
- Evaluation kit available (MAX1436BEVKIT)
Applications
- Medical Imaging Instrumentation
- Digital Communications
- Instrumentation
- Multichannel Communications
- Ultrasound
Q & A
- What is the resolution of the MAX1436BECQ+TD ADC?
The MAX1436BECQ+TD has a resolution of 12 bits.
- What is the sampling rate of the MAX1436BECQ+TD?
The sampling rate is 40 Msps.
- What is the power consumption of the MAX1436BECQ+TD?
The power consumption is 743mW (93mW per channel) in normal operation.
- What is the signal-to-noise ratio (SNR) of the MAX1436BECQ+TD?
The SNR is 69.9dB (typ) at a 5.3MHz input frequency.
- Does the MAX1436BECQ+TD support external reference voltage?
- What type of outputs does the MAX1436BECQ+TD have?
The MAX1436BECQ+TD has serial LVDS outputs with support for SLVS mode.
- What is the operating temperature range of the MAX1436BECQ+TD?
The operating temperature range is -40°C to 85°C.
- Is an evaluation kit available for the MAX1436BECQ+TD?
- What are the primary applications of the MAX1436BECQ+TD?
The primary applications include medical imaging instrumentation, digital communications, instrumentation, multichannel communications, and ultrasound.
- What is the package type of the MAX1436BECQ+TD?
The package type is 100-TQFP (14x14) with an exposed pad.
