Overview
The MAX1278ETC+ is a high-performance analog-to-digital converter (ADC) from Analog Devices Inc./Maxim Integrated. This device is designed to provide high accuracy and speed, making it suitable for a variety of applications that require precise analog-to-digital conversion.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Channels | 1 Channel |
| Interface Type | SPI |
| Sampling Rate | 1.8 MS/s |
| Input Type | Differential |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 1.8V ~ 5.25V |
| Operating Temperature | -40°C ~ 85°C |

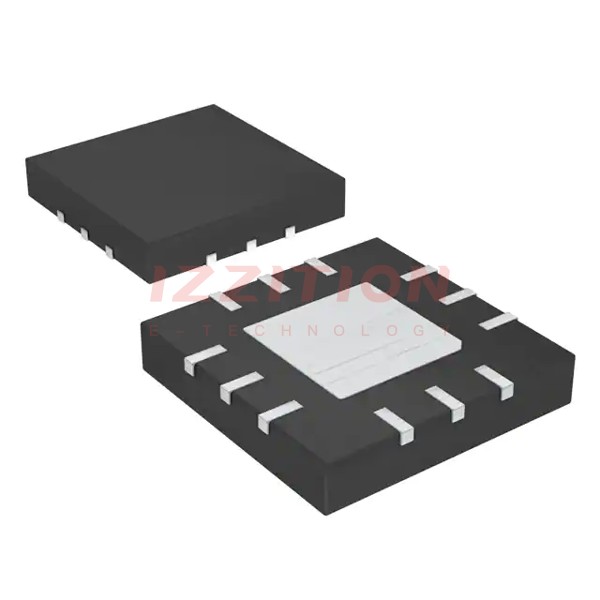

| Package / Case | 12-WQFN Exposed Pad |
Key Features
- High-speed SPI interface for fast data transfer
- Differential input for improved noise immunity and accuracy
- Wide operating temperature range for robust performance in various environments
- Compact 12-WQFN package with exposed pad for efficient thermal management
Applications
- Industrial control and automation systems
- Medical devices requiring precise analog-to-digital conversion
- Aerospace and defense applications where high reliability is crucial
- Automotive systems, including sensor interfaces and data acquisition
Q & A
- What is the sampling rate of the MAX1278ETC+?
The sampling rate of the MAX1278ETC+ is 1.8 MS/s.
- What type of interface does the MAX1278ETC+ use?
The MAX1278ETC+ uses an SPI interface.
- What is the input type of the MAX1278ETC+?
The input type of the MAX1278ETC+ is differential.
- What is the operating temperature range of the MAX1278ETC+?
The operating temperature range of the MAX1278ETC+ is -40°C to 85°C.
- What is the package type of the MAX1278ETC+?
The MAX1278ETC+ comes in a 12-WQFN package with an exposed pad.
- What are some common applications of the MAX1278ETC+?
The MAX1278ETC+ is commonly used in industrial control, medical devices, aerospace, and automotive systems.
- How does the MAX1278ETC+ ensure thermal management?
The MAX1278ETC+ ensures thermal management through its compact 12-WQFN package with an exposed pad.
- What are the supply voltage ranges for the MAX1278ETC+?
The analog supply voltage is 5V, and the digital supply voltage ranges from 1.8V to 5.25V.
- Is the MAX1278ETC+ suitable for high-reliability applications?
Yes, the MAX1278ETC+ is designed to be highly reliable and is suitable for applications where reliability is critical.
- Where can I find more detailed specifications and documentation for the MAX1278ETC+?
You can find detailed specifications and documentation on the Analog Devices Inc./Maxim Integrated website or through distributors like Digi-Key and Mouser.
