Overview
The MAX1276CTC+T, produced by Analog Devices Inc./Maxim Integrated, is a high-performance, low-power, 12-bit analog-to-digital converter (ADC) designed for a variety of applications requiring high speed and precision. This device operates at up to 1.8 million samples per second (Msps) and features a true-differential input, which enhances noise immunity, reduces distortion, and increases the dynamic range compared to single-ended inputs. The MAX1276CTC+T includes an internal 4.096V reference and supports a standard SPI/QSPI/MICROWIRE interface, making it compatible with standard digital signal processor (DSP) synchronous serial interfaces.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 12-bit |
| Sampling Rate | Up to 1.8 Msps |
| Supply Voltage | +4.75V to +5.25V |
| Internal Reference | 4.096V |
| Analog Input Type | True-Differential (Unipolar for MAX1276, Bipolar for MAX1278) |
| Power Dissipation | 55mW (typ) |
| Shutdown Current | 1µA (max) |
| Interface | SPI/QSPI/MICROWIRE |
| Temperature Range | -40°C to +85°C |

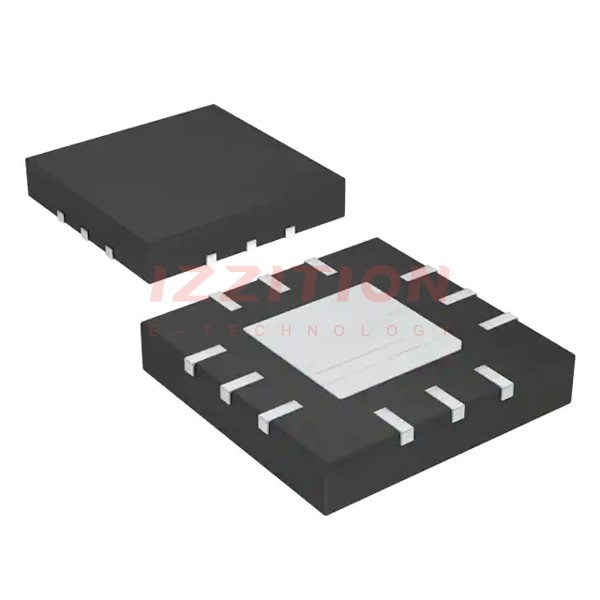

| Package | 12-pin TQFN |
Key Features
- High-speed conversion rate of up to 1.8 Msps
- Low power dissipation of 55mW (typ)
- Low shutdown current of 1µA (max)
- True-differential analog inputs for improved noise immunity and dynamic range
- Internal 4.096V reference
- Standard SPI/QSPI/MICROWIRE interface for easy integration with DSPs
- Partial and full power-down modes for power management
- Separate power-supply input (VL) for direct interfacing to +1.8V to VDD digital logic
- No pipeline delays
- Small 12-pin TQFN package
Applications
The MAX1276CTC+T is ideal for various applications including:
- Industrial process control
- Motor control
- Base-station applications
- Data acquisition
- Communications
- Portable instruments
Q & A
- What is the maximum sampling rate of the MAX1276CTC+T?
The MAX1276CTC+T can sample at up to 1.8 million samples per second (Msps). - What type of analog input does the MAX1276CTC+T have?
The MAX1276CTC+T has true-differential analog inputs. - What is the internal reference voltage of the MAX1276CTC+T?
The internal reference voltage is 4.096V. - What is the typical power dissipation of the MAX1276CTC+T?
The typical power dissipation is 55mW. - What is the maximum shutdown current of the MAX1276CTC+T?
The maximum shutdown current is 1µA. - What interface does the MAX1276CTC+T support?
The MAX1276CTC+T supports a standard SPI/QSPI/MICROWIRE interface. - What is the temperature range of the MAX1276CTC+T?
The temperature range is -40°C to +85°C. - In what package is the MAX1276CTC+T available?
The MAX1276CTC+T is available in a 12-pin TQFN package. - What are some typical applications of the MAX1276CTC+T?
Typical applications include industrial process control, motor control, base-station applications, data acquisition, communications, and portable instruments. - Does the MAX1276CTC+T have power-down modes?
Yes, the MAX1276CTC+T features partial and full power-down modes for power management.
